JS-6132 Fluorine Fluid
Product Information
Brand: Jingshang
Model: JS-6132
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 132 ℃
JS-6132 fluorine fluid is transparent, colorless, non-conductive, non flammable, residue free, thermally and chemically stable, and can be used in many heat transfer fluid applications. With its wide liquid range (-50 to 128 degrees Celsius) and compatibility, it can be used for various electronic single-phase and two-phase heat transfer applications, including etching machines, ion implantation machines, testers, etc. in the semiconductor market. Due to the extremely narrow boiling point of JS-6132, its composition does not change over time. This can keep fluid loss to a minimum and ensure consistent transmission performance.
u Thermal stability
u Chemical stability
u Wide working temperature range
u Non-conductive
u Narrow boiling point range
u compatibility
u Thermal management fluid applications
u For example, semiconductor wafer manufacturing
u Electronic reliability testing
u Immersion cooling for data center servers
Physical state | liquid |
Specific physical form: | liquid |
colour | colourless |
smell | Odorless |
Olfactory threshold | No information available |
PH value | Not applicable |
Melting point/freezing point | Not applicable |
Boiling point/Initial boiling point/Boiling range | 132 ℃ |
flash point | No flash point |
Evaporation rate | <1 No unit or not applicable. [Reference standard: molar ratio=1] |
Flammability (solid, gas) | Not applicable |
Combustion limit range (lower limit) | Not detected |
Burning limit range (upper limit) | Not detected |
Vapor pressure | 1,866.5 Pa [@ 23 ℃ ] |
Steam density, steam relative density | 18 [@ 23 ℃] [Reference standard: Air=1] |
density | 1.8 g/ml |
relative density | 1.8 [Reference standard: Water=1] |
Solubility - Water solubility | 0 |
Solubility - Non water soluble | No information available |
N-Octanol/Water Partition Coefficient | No information available |
Spontaneous combustion temperature | No information available |
decomposition temperature | Not applicable |
Viscosity/dynamic viscosity | 0.7 mm2/sec [@ 25 ℃ ] |
Volatile Organic Compounds | [Details: Exemption] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | [Details: Exemption] |
molecular weight | No information available |

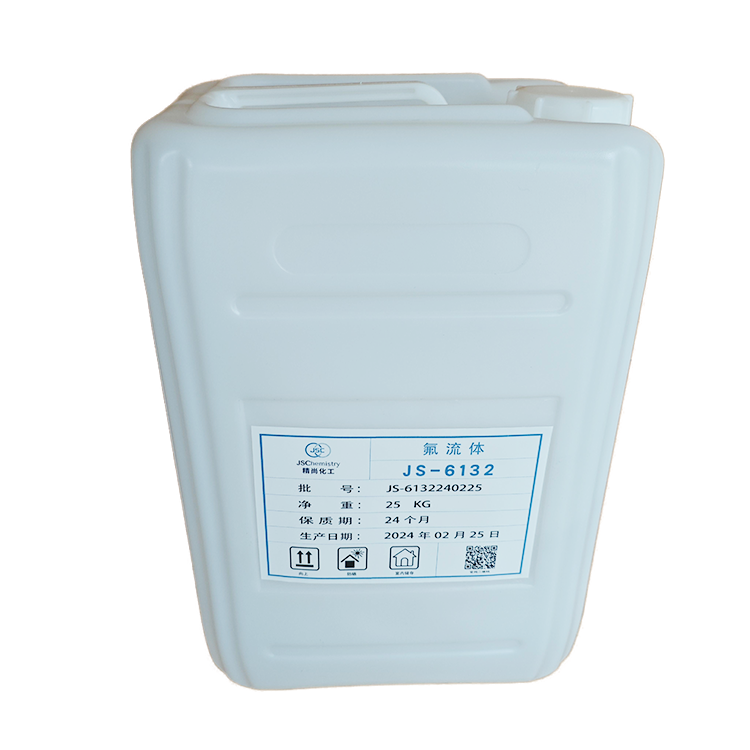

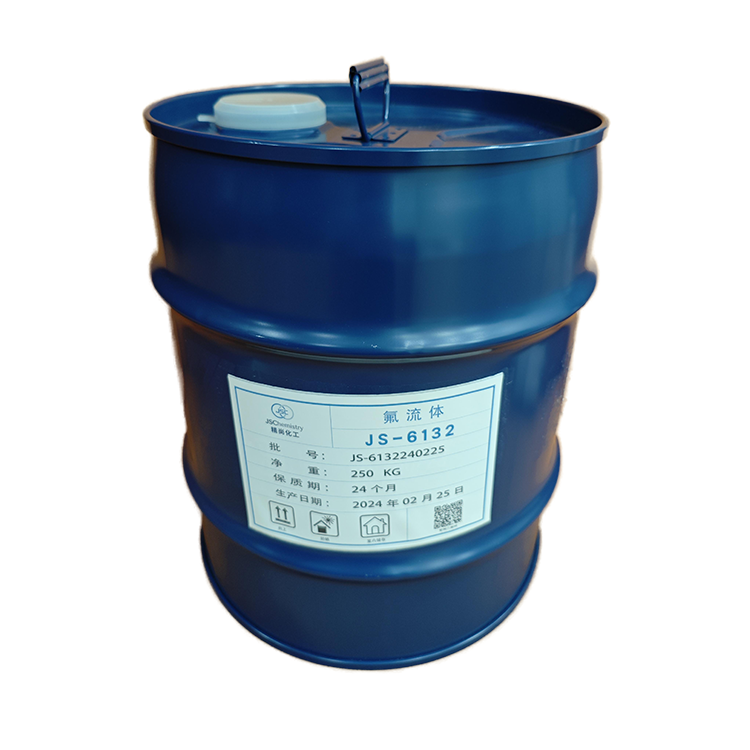

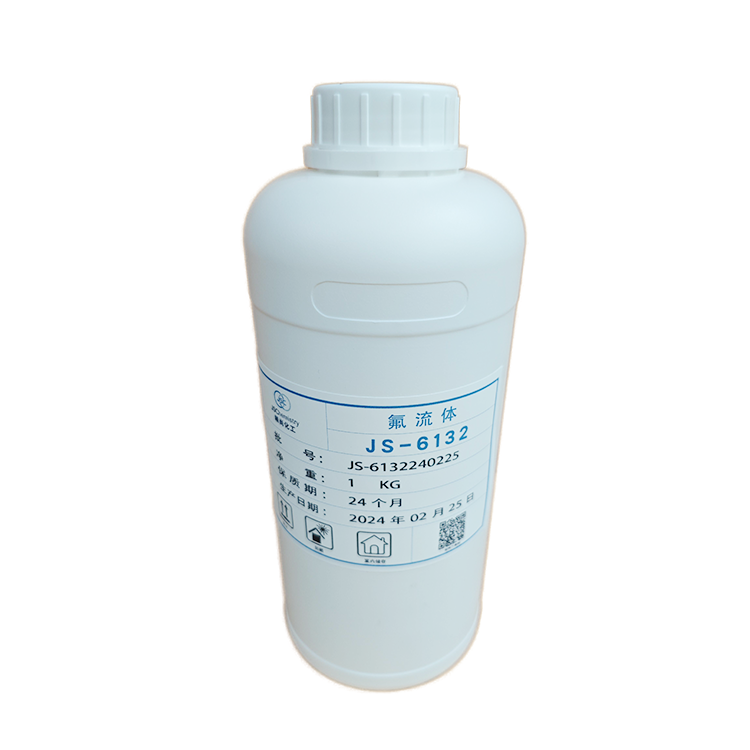

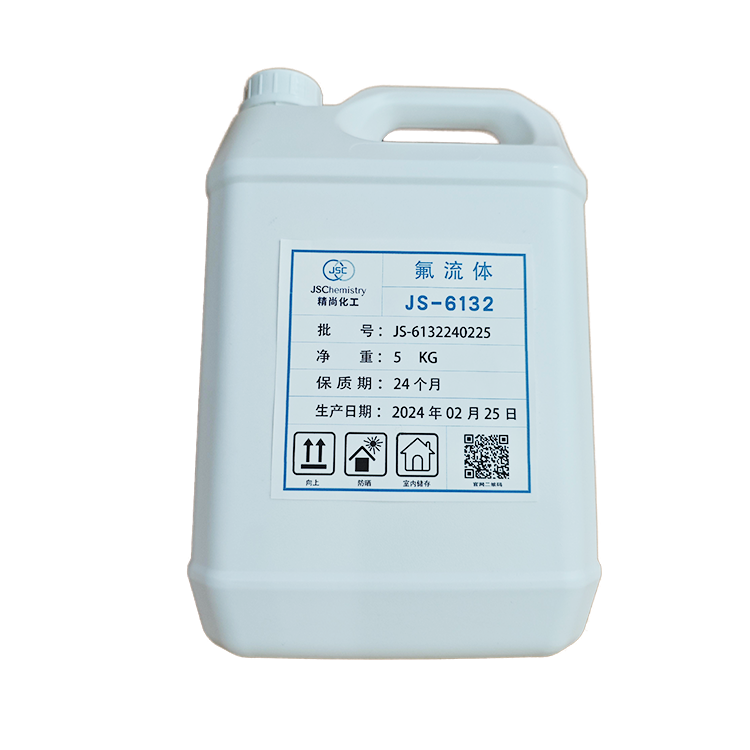

JS-6132 fluorine fluid should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-6132 fluorine fluid is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
