JS-6097 Fluorine Fluid
Product Information
Brand: Jingshang
Model: JS-6097
Color: Transparent liquid

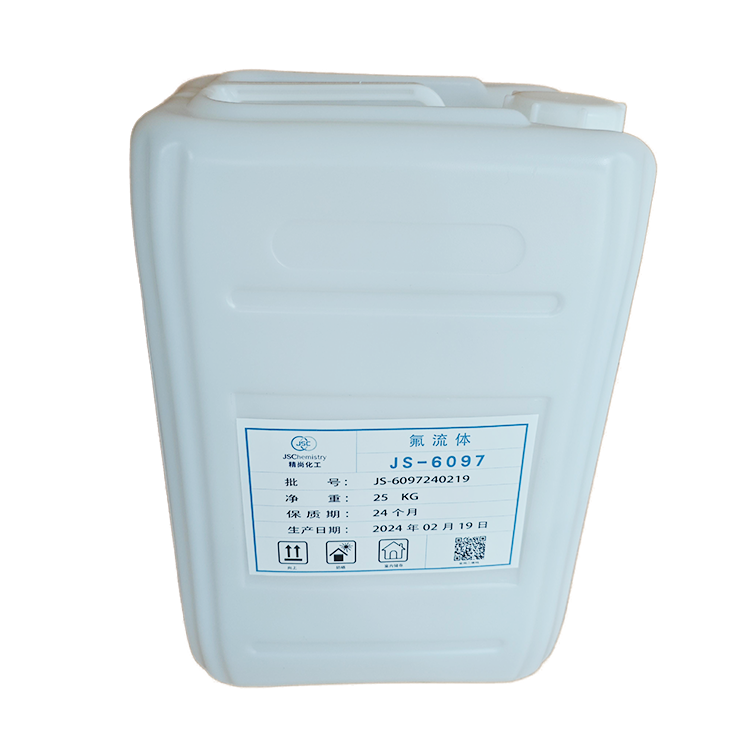

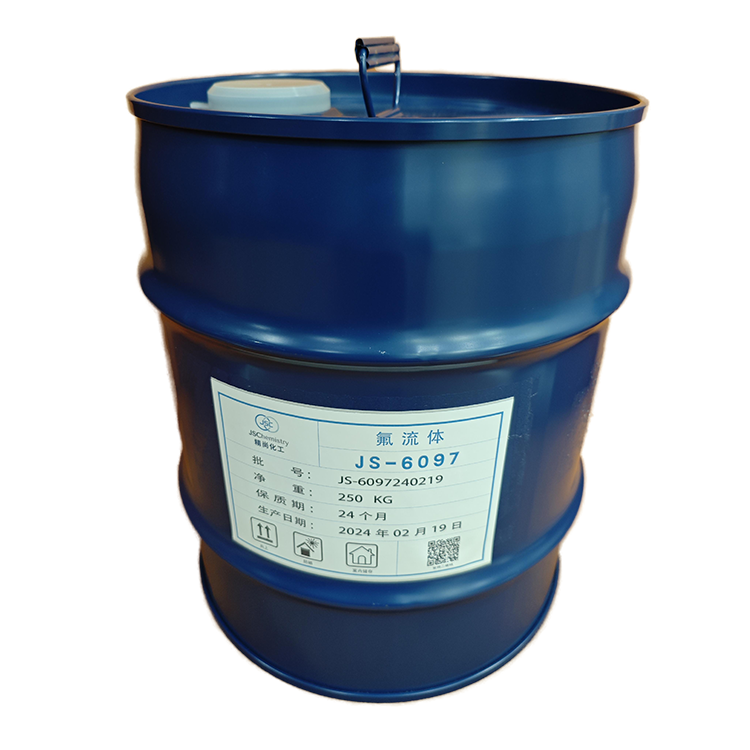

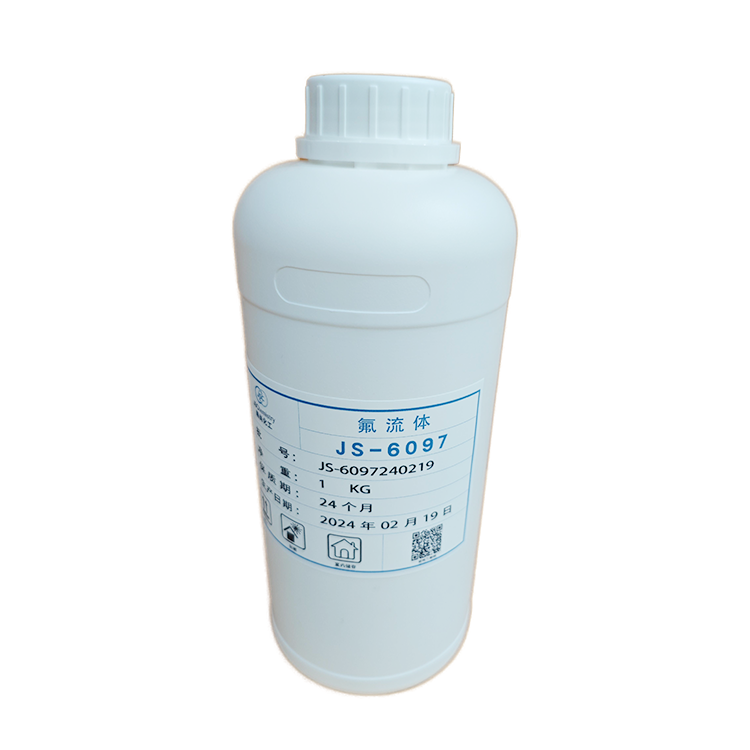

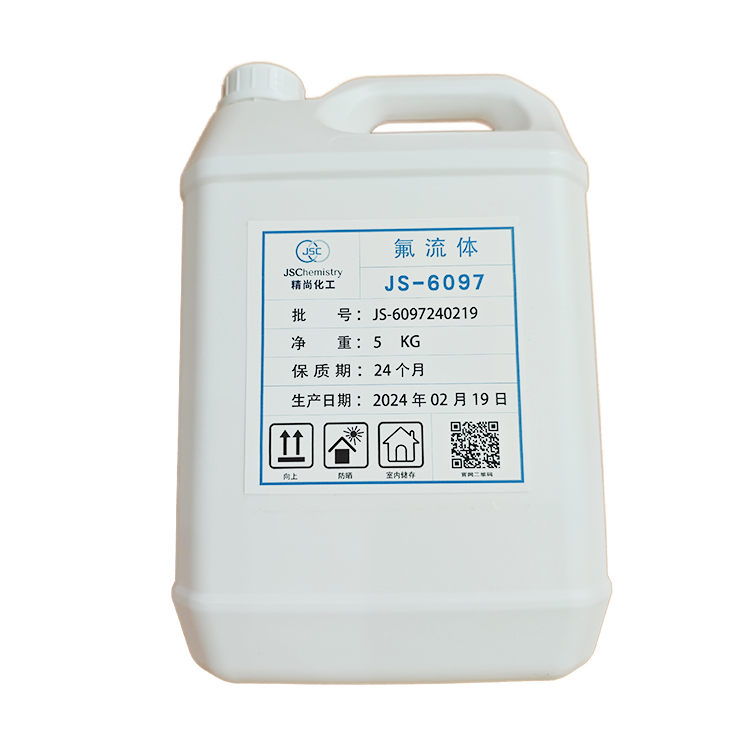

Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 97 ℃
JS-6097 fluorine fluid is a non-conductive, thermally and chemically stable fluid with a wide liquid range (-125 to 95 degrees Celsius), which can be used for many low-temperature heat transfer applications, such as reliability testing and cooling of electronic devices. The additional information is transparent, colorless, non-conductive, non flammable, residue free, thermally and chemically stable liquid, which is very suitable for many heat transfer fluid applications. Its very wide liquid range (-125 to 95 degrees Celsius) and compatibility make it highly suitable for various electronic single-phase and two-phase heat transfer applications, including reliability testing, power conversion, electronic cooling, and more. Due to the extremely narrow boiling range of JS-6097, its composition does not change over time, ensuring consistent transport performance.
u Thermal stability
u Chemical stability
u Wide range of liquids
u Non-conductive
u Narrow boiling point range
u compatibility
u Heat transfer fluids for various industries
u Used for thermal shock and testing equipment
u Ideal application conditions for high-voltage transformers and power electronic equipment
u Cooling ion implanters, dry etchers, and CVD machines
u Used as direct contact single-phase and two-phase coolant in supercomputers and sensitive military electronic devices
Physical state | Liquid |
Specific physical form | liquid |
colour | colourless |
smell | Odorless |
Olfactory threshold | No information available |
PH value | Not applicable |
Melting point/freezing point | Not applicable |
Boiling point/Initial boiling point/Boiling range | 97 ℃ |
Flash point (℃) | No flash point |
Evaporation rate | 1 [Reference standard: molar ratio=1] |
Flammability (solid, gas) | |
Combustion limit range (lower limit) | Not detected |
Burning limit range (upper limit) | Not detected |
Vapor pressure | 6,746.1 Pa [@ 20 ℃ ] |
Vapor density | 14 [Reference standard: Air=1] |
density | 1.8 g/ml |
relative density | 1.8 [Reference standard: Water=1] |
Water solubility | 0.0662 mg/l [@ 23 ℃] |
Solubility - Non water soluble | No information available |
N-Octanol/Water Partition Coefficient | No information available |
Spontaneous combustion temperature | No information available |
decomposition temperature | Not applicable |
viscosity | 0.8 mm2/sec [@ 25 ℃ ] |
molecular weight | No information available |
Volatile Organic Compounds | No information available |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | No information available |
JS-6097 fluorine fluid should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-6097 fluorine fluid is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
