JS-6217 Fluorine Fluid
Product Information
Brand: Jingshang
Model: JS-6217
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 217 ℃
JS-6217 fluorine fluid is a transparent, colorless, perfluorinated liquid. Like other fluorine inert electronic liquids, fluorine inert liquid JS-6217 is thermally and chemically stable, compatible with sensitive materials, non flammable, low toxicity, and has almost no residue when evaporated. This unique performance combination makes the fluorine inert liquid JS-6217 an ideal choice for many electronic applications, including gas phase welding and thermal management.
JS-6217 is a boiling fluorine inert liquid, which is an ideal fluid for condensation reflow soldering. It has a very high density and is easy to control. The elimination of oxygen allows for the use of mild flux compounds, simplifying the cleaning of finished circuit boards. Other uses of fluorine inert liquid JS-6217 include heat transfer, electronic testing, and inert reaction media.
u Excellent electrical insulation and thermal conductivity
u Good chemical stability
u Good material compatibility, non reactive with the vast majority of metals, plastics, and polymers
u Very low surface tension, good permeability
u Non flammable
u No irritating odor, non-toxic, good safety
u No damage to ozone
u Cleaning of finished circuit boards
u As an ideal fluid for condensation reflow soldering
u Heat transfer, electronic testing, and inert reaction media
u Satisfy customers' diverse requirements in heat conduction, manufacturing, and testing in the electronic manufacturing industry
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Odorless |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | Not applicable |
Boiling point/initial boiling point/boiling range: | 217 ℃ |
Flash point: | No flash point |
Evaporation rate: | >1 [Reference standard: molar ratio=1] |
Flammability (solid, gas): | |
Combustion limit range (lower limit): | Not detected |
Burning limit range (upper limit): | Not detected |
Vapor pressure: | <=13.3 Pa [@ 25 ℃ ] |
Steam density: | 28.3 [@ 25 ℃] [Reference standard: Air=1] |
Density: | 1.9 g/ml |
Relative density: | 1.9 [Reference standard: Water=1] |
Solubility Water solubility: | 0 |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | No information available |
Spontaneous combustion temperature: | No information available |
Decomposition temperature: | Not applicable |
Viscosity: | 14 mm2/sec [@ 25 ℃ ] |
molecular weight | No information available |
Volatile Organic Compounds | [Details: Exemption] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | [Details: Exemption] |

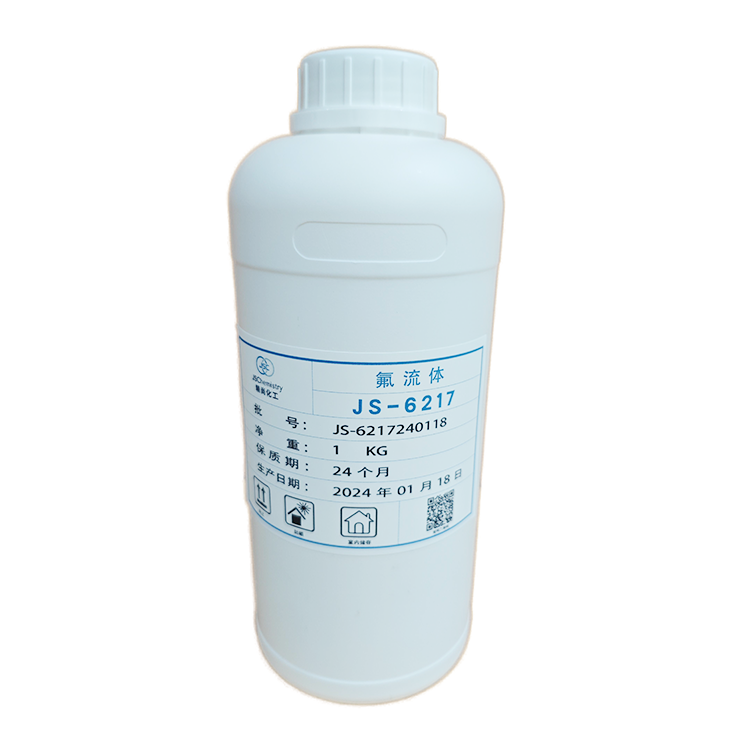

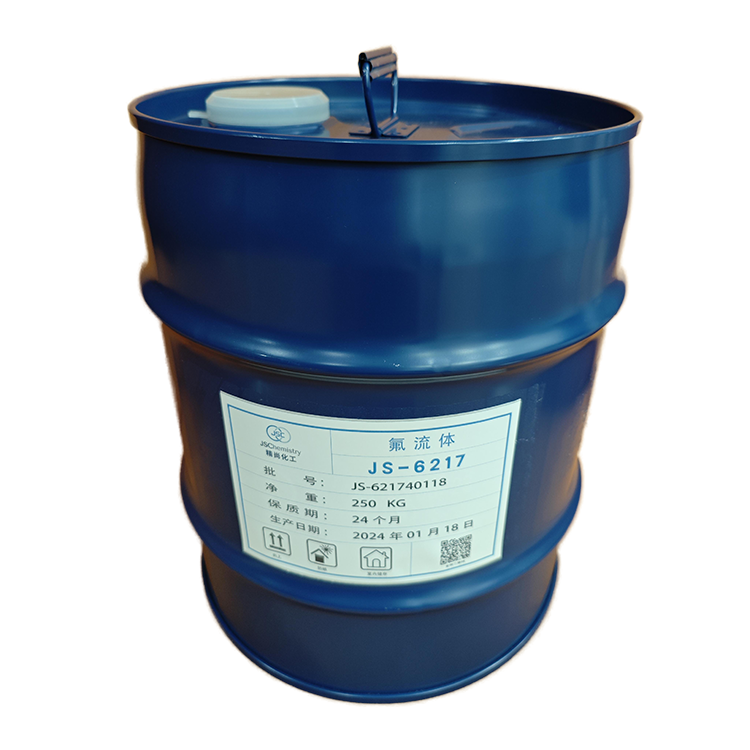

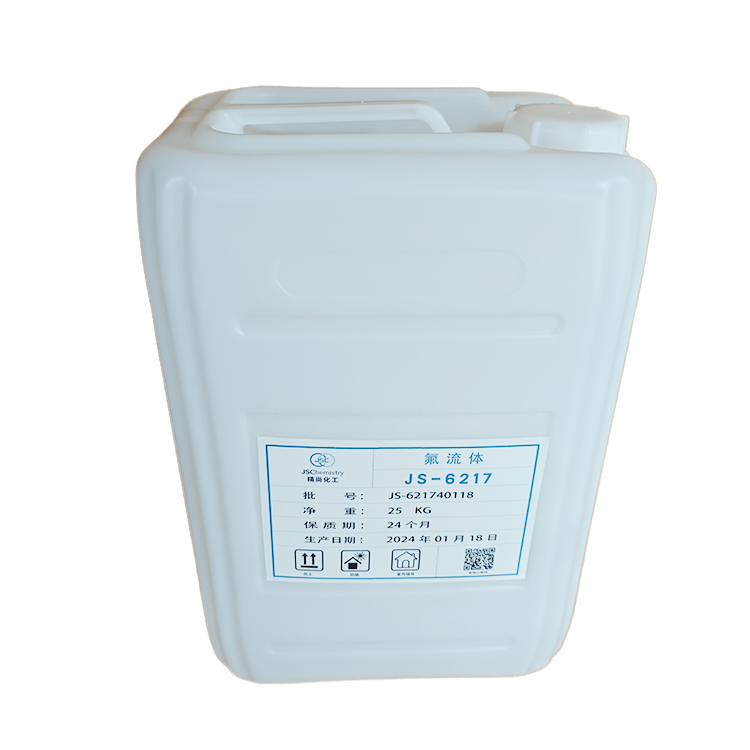

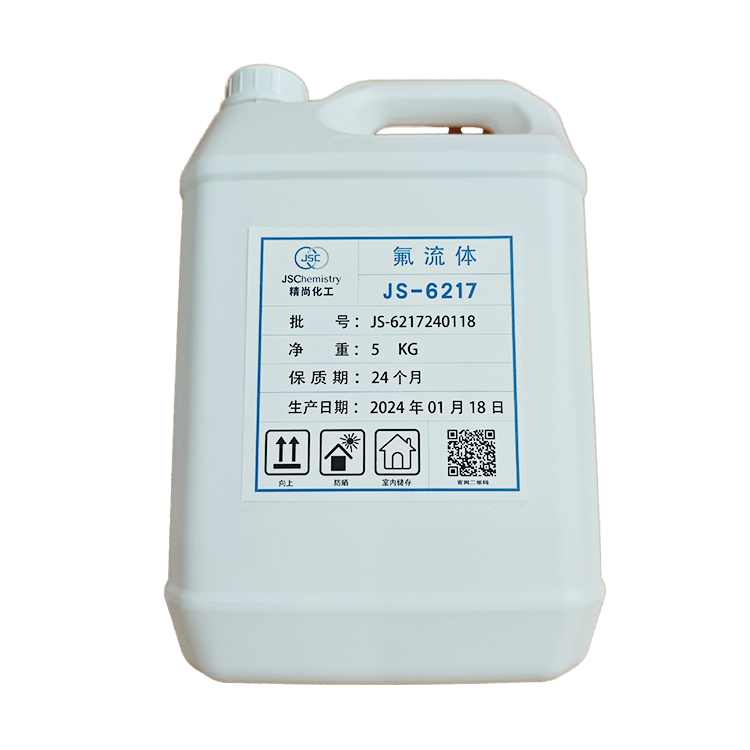

JS-6217 fluorine fluid should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-6217 fluorine fluid is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
