JS-6180 Fluorine Fluid
Product Information
Brand: Jingshang
Model: JS-6180
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 180 ℃
JS-6180 fluorine fluid is a transparent, colorless, perfluorinated liquid. Like other fluorine inert electronic liquids, fluorine inert liquid JS-6180 is thermally and chemically stable, compatible with sensitive materials, non flammable, low toxicity, and has almost no residue when evaporated. This unique combination of characteristics makes the fluorine inert liquid JS-6180 an ideal choice for many electronic applications, including many electronic quality and reliability tests. The boiling point of fluorine inert liquid JS-6180 is 174 ° C, making it an ideal choice for liquid combustion testing, environmental stress screening, and some gas-phase welding processes. It complies with military specification 883 and serves as an indicator fluid for total leakage testing and a hot fluid for thermal shock testing. The liquid range of fluorine inert liquid JS-6180 is very wide, making it an ideal heat transfer fluid. Its inert nature allows it to be used as a reaction medium.
u Thermal stability
u Chemical stability
u Wide range of liquids
u Non-conductive
u Narrow boiling point range
u compatibility
u Gas phase welding fluid
u Multiple electronic applications, including various electronic quality and reliability tests
u Indicating fluid for total leakage test and hot fluid for thermal shock test
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Odorless |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | Not applicable |
Boiling point/initial boiling point/boiling range: | 180 ℃ |
Flash point: | No flash point |
Evaporation rate: | >1. No unit or not applicable. [Reference standard: molar ratio=1] |
Flammability (solid, gas): | |
Combustion limit range (lower limit): | Not detected |
Burning limit range (upper limit): | Not detected |
Vapor pressure: | 173.3 Pa [@ 20 ℃ ] |
Steam density: | 23.3 No unit or not applicable@ 20 ℃] [Reference standard: Air=1 |
Density: | 1.9 g/ml |
Relative density: | 1.9 [Reference standard: Water=1] |
Solubility Water solubility: | 0 |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | No information available |
Spontaneous combustion temperature: | No information available |
Decomposition temperature: | Not applicable |
Viscosity: | 2.8 mm2/sec [@ 25 ℃ ] |
molecular weight | No information available |
Volatile Organic Compounds | [Details: Exemption] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | [Details: Exemption] |

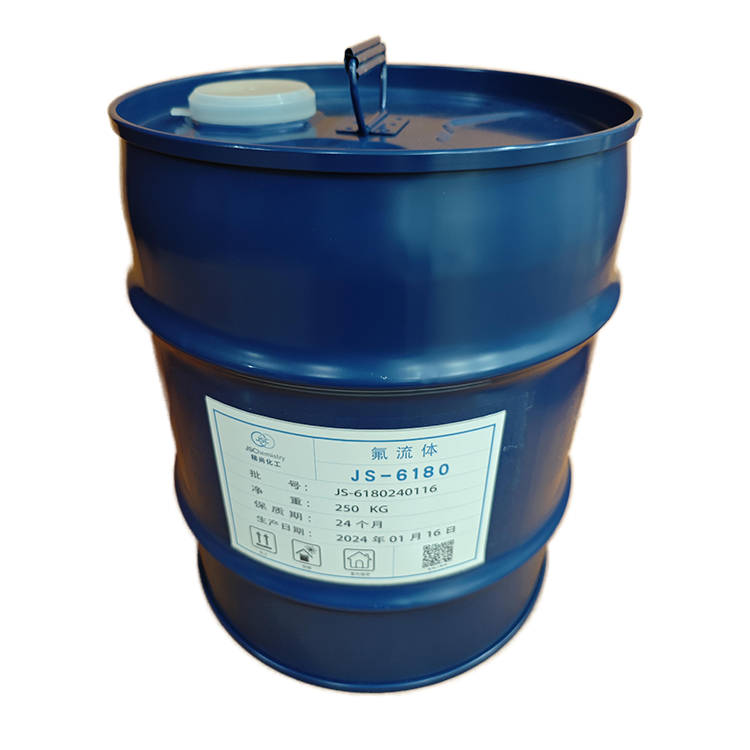

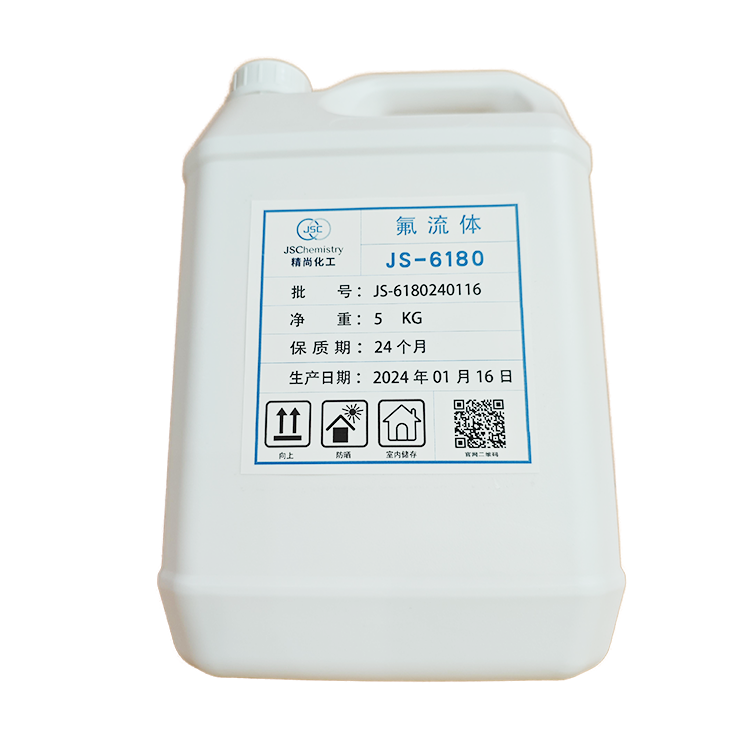

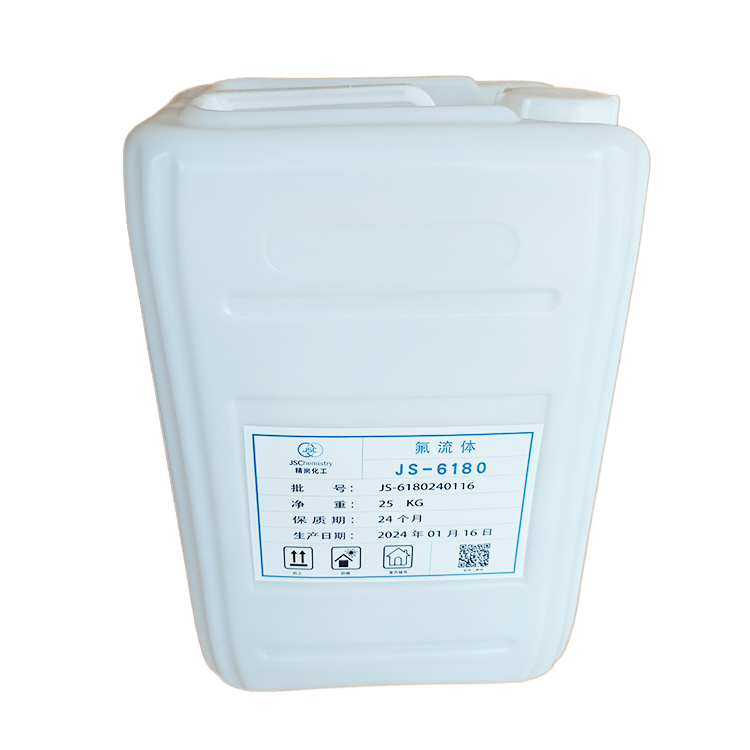

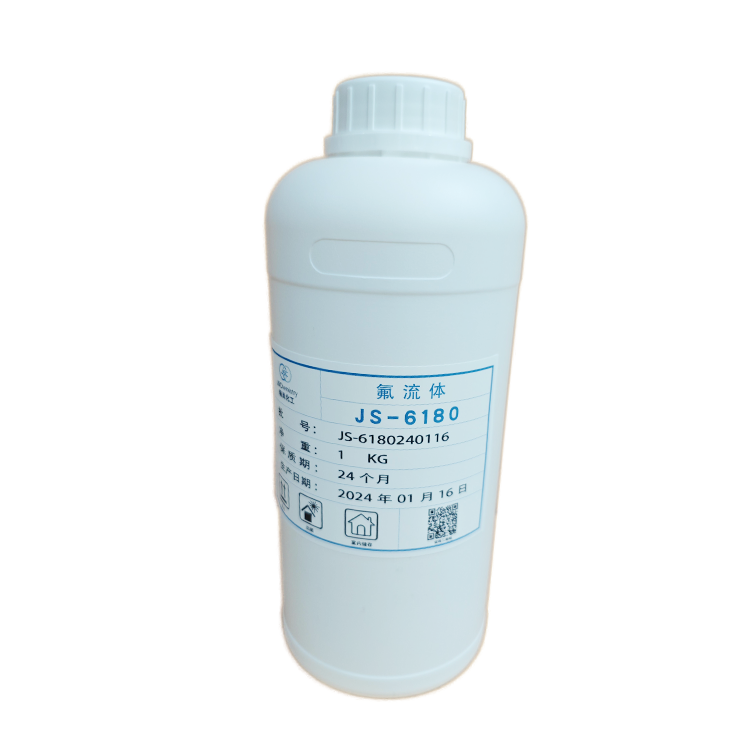

JS-6180 fluorine fluid should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-6180 fluorine fluid is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
