JS-6170 Fluorine Fluid
Product Information
Brand: Jingshang
Model: JS-6170
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 170 ℃
JS-6170 fluorine fluid is a transparent, colorless, thermally stable, perfluorinated liquid that is highly suitable for many single-phase heat transfer applications in the semiconductor manufacturing industry. Its liquid range (-57 ° C to 165 ° C) makes it suitable for various applications such as etchers, ion implanters, testers, etc. Other uses include heat transfer in data centers, high-performance computing, power electronics, and aviation electronics. Fluorine inert liquid JS-6170 is also used for electronic testing. Due to the fact that fluorine inert liquid JS-6170 is mainly a single compound, its composition does not change or separate over time. This minimizes fluid loss and maintains unchanged transmission characteristics.
u Thermal stability
u Chemical stability
u Wide range of liquids
u Non-conductive
u Narrow boiling point range
u compatibility
u Very suitable for many single-phase heat transfer applications in the semiconductor manufacturing industry
Physical state: | liquid |
Specific physical form: | liquid |
colour | colourless |
smell | Slightly odorous |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | Not applicable |
Boiling point/initial boiling point/boiling range: | 170 ℃ |
Flash point: | No flash point [test method: closed cup] [detailed information: tested according to ASTM D-3278-96 e-1 method] |
Evaporation rate: | <1 No unit or not applicable. [Reference standard: molar ratio=1] |
Flammability (solid, gas): | Not applicable |
Combustion limit range (lower limit): | Not detected |
Burning limit range (upper limit): | Not detected |
Vapor pressure: | 61700 Pa [@ 25 ℃] [Details: Approximately] |
Steam density, steam relative density: | 22.5 [@ 25 ℃] [Reference standard: Air=1] |
Density: | 1.9 g/ml |
Relative density: | 1.9 [Reference standard: Water=1] |
Solubility Water solubility: | 0 |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | No information available |
Spontaneous combustion temperature: | No information available |
Decomposition temperature: | No information available |
Viscosity/dynamic viscosity: | 2 mm2/sec [@ 25 ℃ ] |
molecular weight | No information available |
Volatile Organic Compounds | [Details: Exemption] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | [Details: Exemption] |

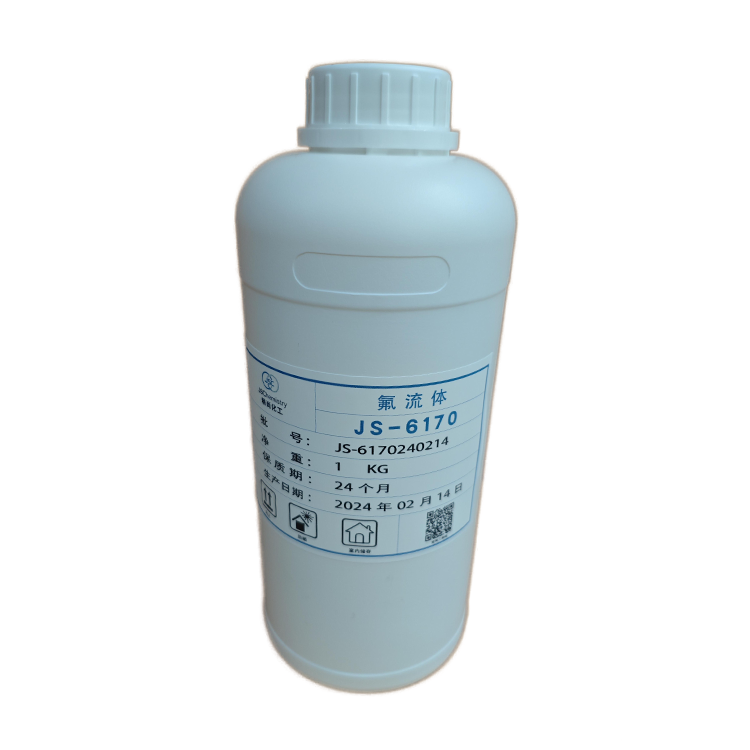

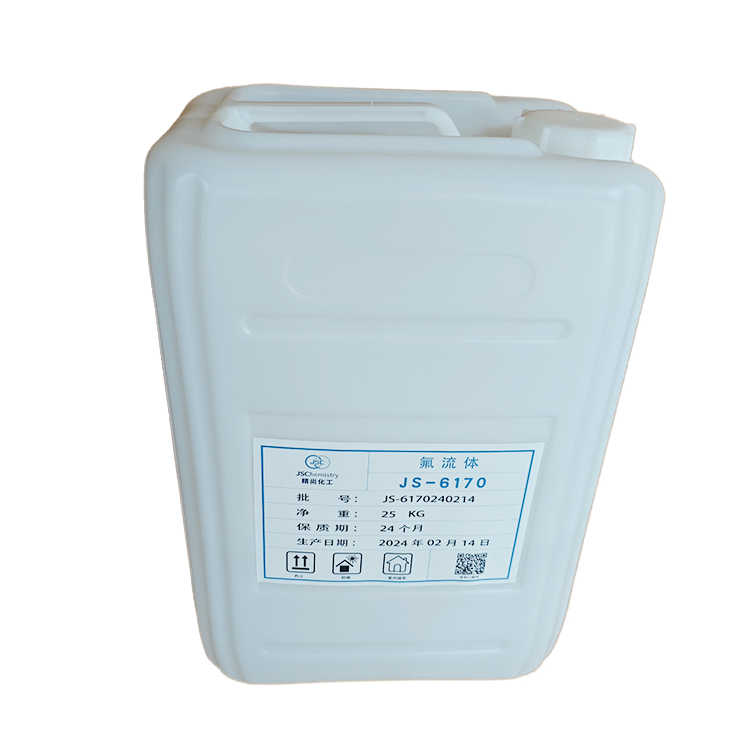

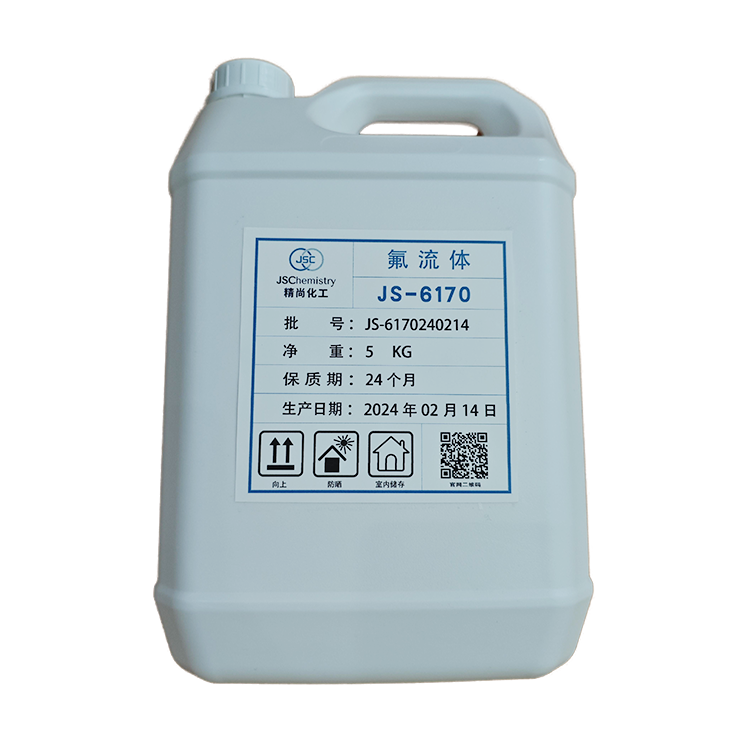

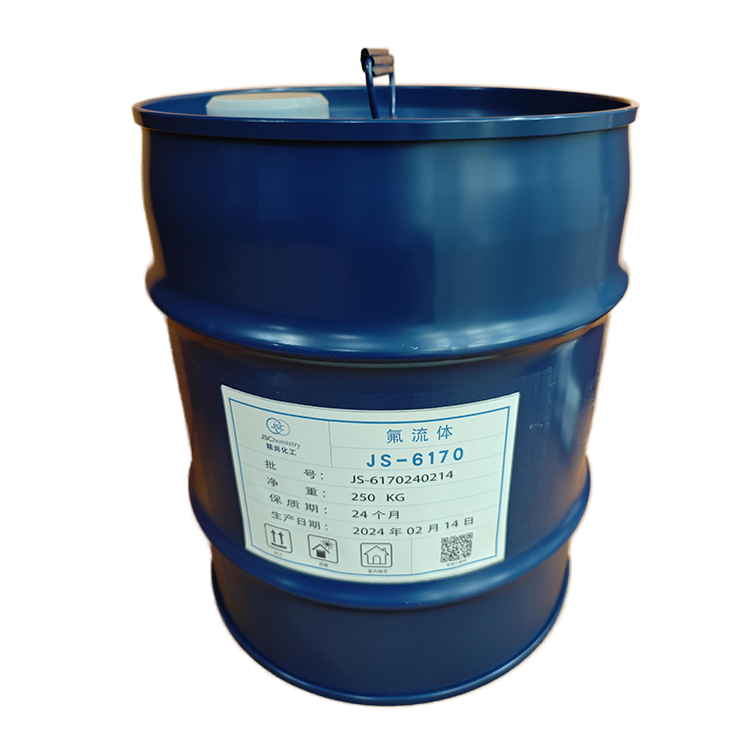

JS-6170 fluorine fluid should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-6170 fluorine fluid is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
