JS-6137 Fluorine Fluid
Product Information
Brand: Jingshang
Model: JS-6137
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 137 ℃
JS-6137 Fluorine Fluid is a new type of perfluoropolyether product with excellent chemical resistance, thermal resistance, and dielectric properties. It is non-toxic, has no flash point, no flash point, low viscosity, and is a new generation of heat transfer fluid.
u Excellent chemical resistance
u Thermal resistance and dielectric properties
u Non toxic
u No flash point
u No ignition point
u Low viscosity
u Semiconductor pharmaceuticals, chemical industry, aviation, LCD screen manufacturing and other fields
u Can be used in data centers with moderate operating temperatures to achieve cooling and energy savings
u Can be used for liquid lubricating films and composite lubricating films
Boiling point: | 137 ℃ |
Pour point: | -100 ℃ |
Density: | 1.72 g/cm3 |
Kinematic viscosity: | 1.0 cSt |
Steam pressure: | 6 torr |
Specific heat: | 0.23 cal/g ・ ℃ |
Boiling enthalpy of vaporization: | 16 cal/g |
Refractive index: | 1.281 - |
Thermal expansion coefficient: | 0.0011 cm3/cm3 ・ ℃ |
surface tension: | 17 dyne/cm |
thermal conductivity: | 0.065 W/m ・ K |
Dielectric strength: | 40 kV(2.54mm gap) |
Dielectric constant: | <2 - |
Volume resistivity: | >1.0・1015 Ohm・ cm |
Molecular weight: | 630 amu |
Dielectric loss (1 Khz): | 2・10-4 - |
water content: | <10 ppm(wt) |
Dissolved gas volume: | 26 cm3 gas/100 cm3 liquid |

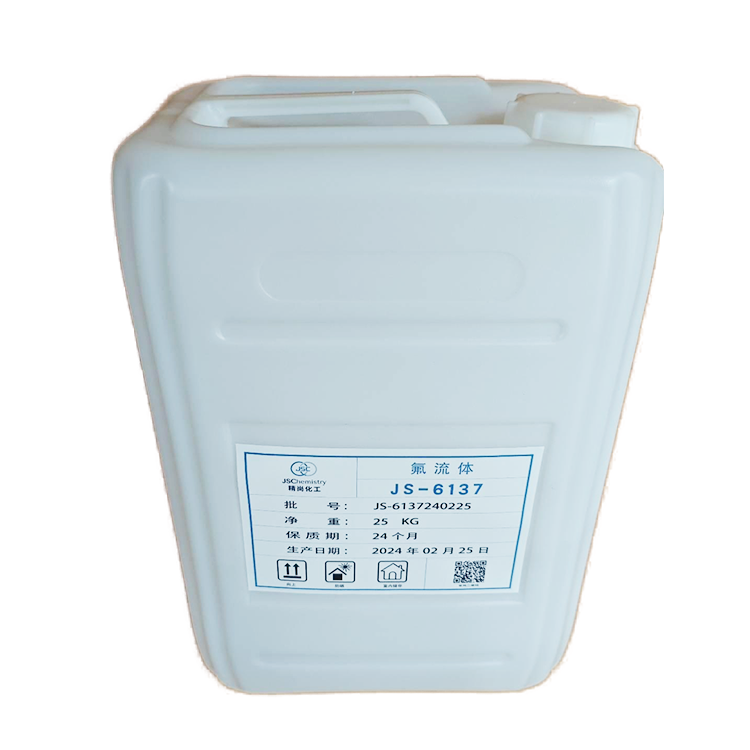

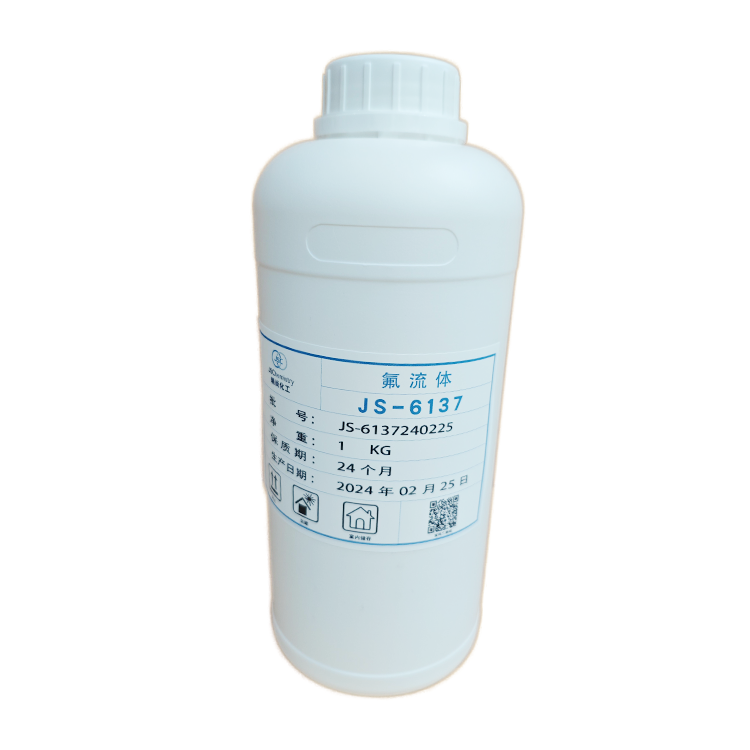

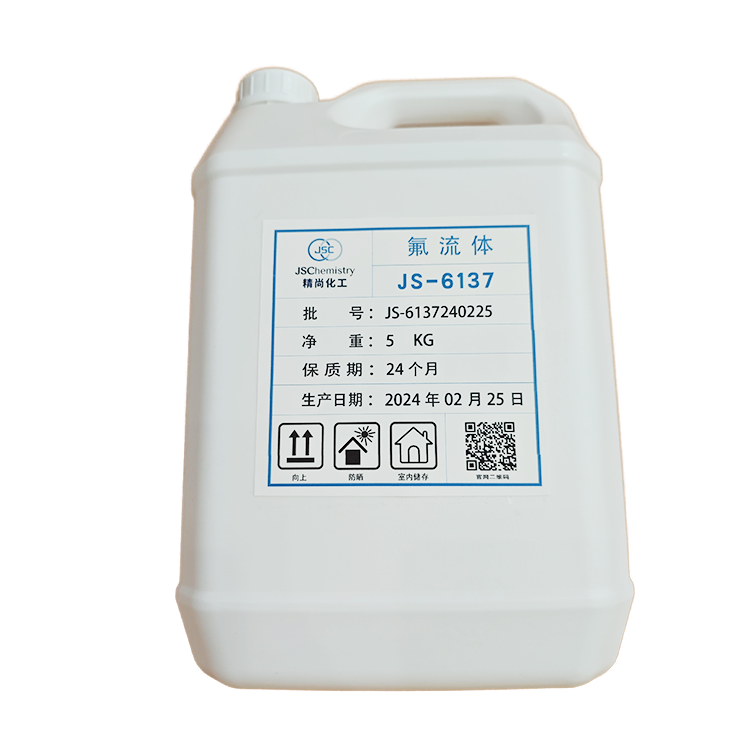

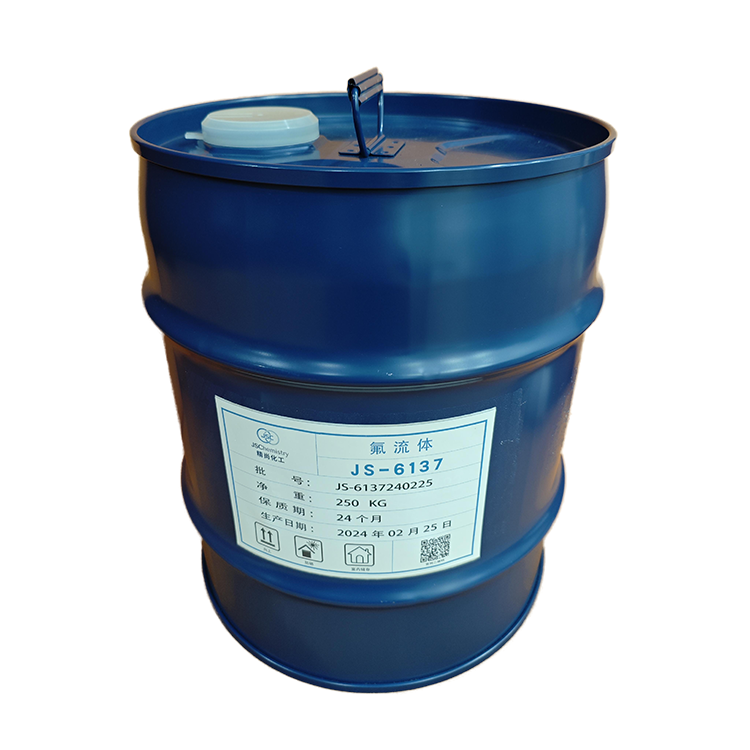

JS-6137 fluorine fluid should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-6137 fluorine fluid is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
