JS-3102-2 Super Waterproof Coating
Product Information
Brand: Jingshang
Model: JS-3102-2
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 102 ℃
JS-3102-2 ultra waterproof coating is applied to the surface of the substrate, playing a role in waterproofing, short circuit prevention, condensation prevention, anti fouling, and flash prevention. Due to its unique repulsive properties to water or water vapor, JS-3102-2 ultra waterproof coating has inherent natural waterproof, moisture resistant, salt spray resistant, mold resistant, dust resistant, corrosion resistant, short circuit resistant, condensation resistant, ice resistant, frost resistant and other characteristics. The coating can still be stored in water for 100 days, and the surface is dry without wetting. JS-3102-2 is non flammable, non-toxic and odorless, and complies with RoHS standards.
u Immersion coating construction;
u No need for shielding, no impact on conductivity;
u Cure at room temperature for 2-3 minutes without heating;
u Environmentally friendly and safe, non flammable;
u Repair is simple, simply replace and re spray.
u Biomimetic lotus leaf surface coating for the power/electronics industry
appearance | milky white |
Solid content (%) | 1.77±0.5 |
Relative density (g/cm3, 25 ℃) | 1.71±0.3 |
volatility | Not easily volatile |
Curing conditions | 3-5 minutes at room temperature |
Boiling point (℃) | one hundred and two |
Flash point (℃) | nothing |
Coating thickness (μ m) | 1±0.1 |
Dielectric strength (kV/· mm) | ≥60 |
adhesion | Level 0 |
Water absorption rate | ＜0.02% |
Insulation resistance (Ω) | >1014 |
High temperature and high humidity (Double 85) | 240-500h |
High and low temperatures (-60 ℃ -200 ℃) | 300-600-800 cycles (depending on different schemes) |
Flame retardant (European standard) | A1 |
Halide Content | Cl/Br/I were not detected |

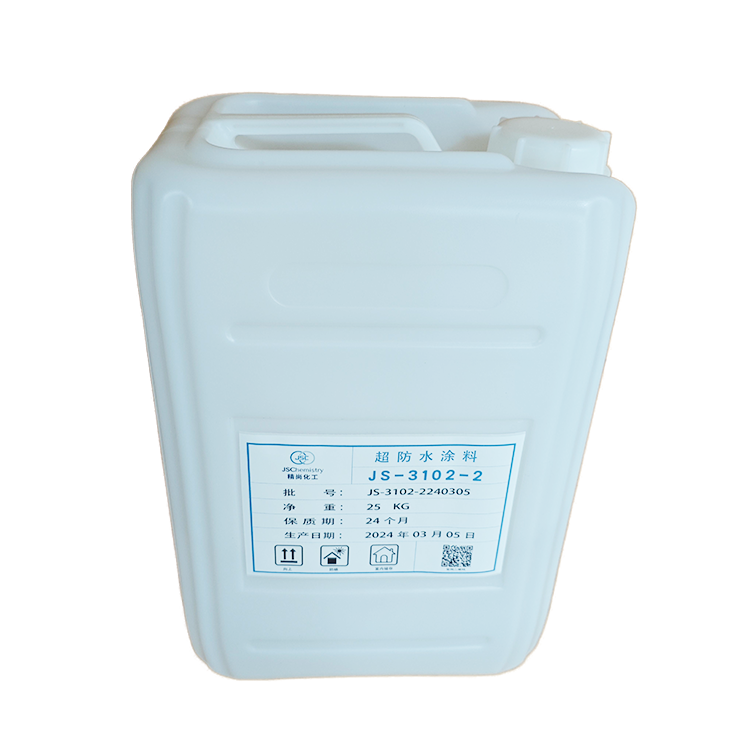

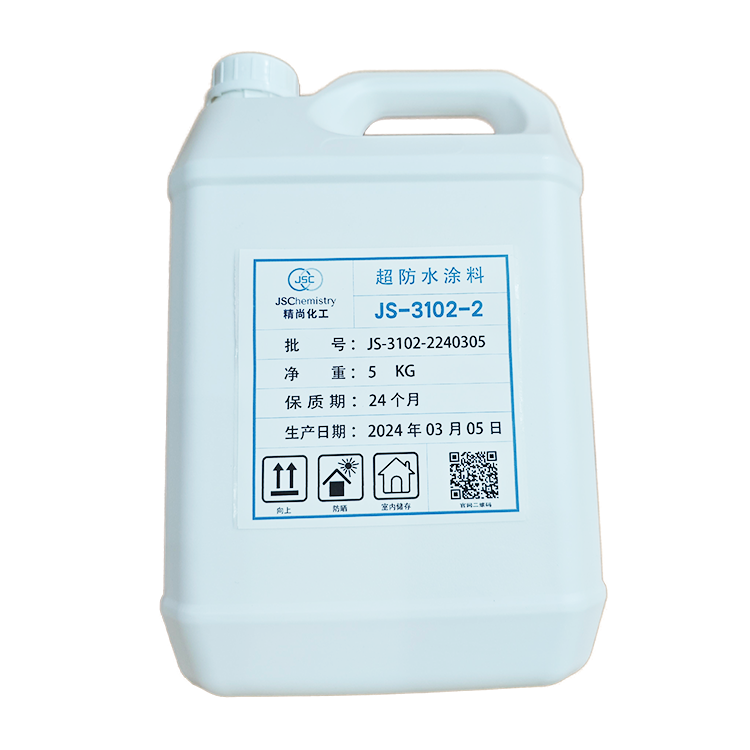

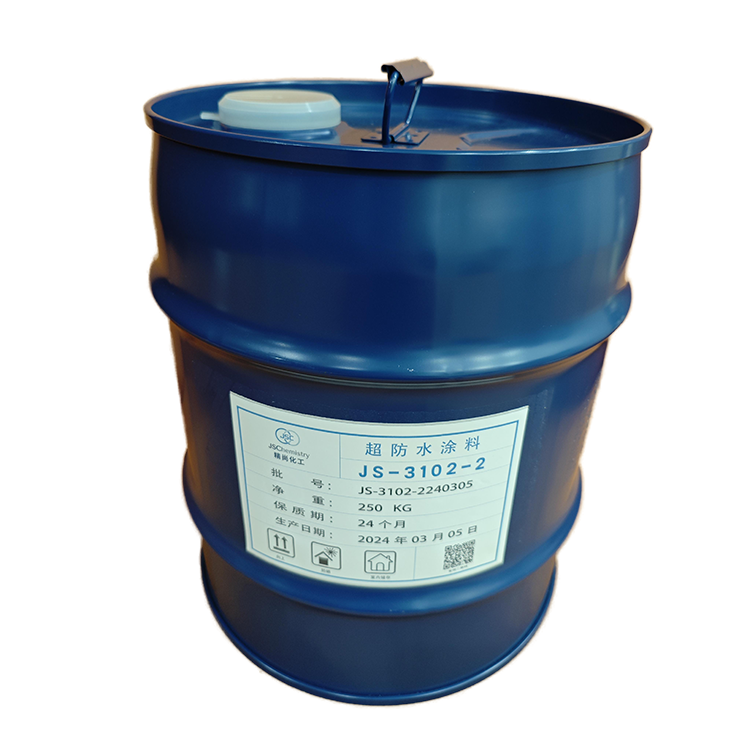

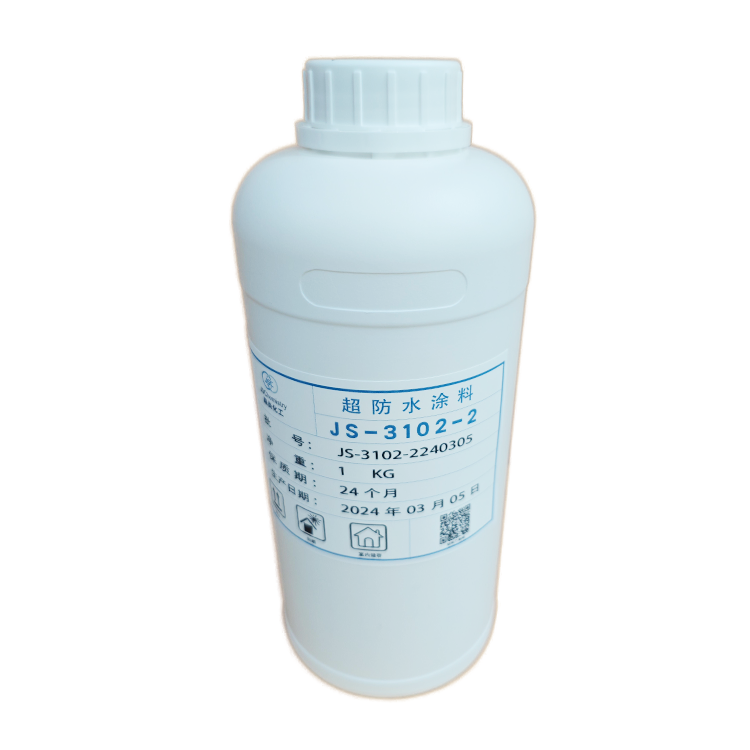

JS-3102-2 ultra waterproof coating should be packaged in clean, dry, and free of other impurities in storage tanks. During packaging, it should be lined with rubber caps and tightly sealed. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-3102-2 ultra waterproof coating should be stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
