JS-3112-8 Electronic Waterproof Agent

Product Information

Brand: Jingshang

Model: JS-3112-8

Color: Transparent liquid

Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel

Shelf life: 24 months unopened

Boiling point: 112 ℃

Product Introduction

JS-3112-8 electronic waterproofing agent is a single component fluorinated polymer, a separated hydrofluoroether solvent, providing a low viscosity, low surface tension coating solution. Specially designed for moisture and corrosion protection of printed circuit boards and electronic components, it dries into an ultra-thin, transparent coating with excellent hydrophobic and oleophobic properties.  It does not require curing and is easy to use.  JS-3112-8 electronic waterproofing agent is non flammable, non ozone depleting, low toxicity, low GWP, RoHS compliant, and VOC free (according to the US Environmental Protection Agency)

Product Features

u Designed for moisture and corrosion resistance in printed circuit boards and electronic components

u Low surface energy enables lubricants, silicone, photoresist solutions, etc.  Roll and discharge freely from the coated surface

u Helps to have repulsion and moisture resistance to liquids such as water, hydrocarbons, silicon, and photoresist.

u In addition to liquids, it also helps prevent corrosive gases and vapors

u This polymer can withstand temperatures up to 175 ℃ within 24 hours and maintain repulsion.

u Basically insoluble in solvents such as heptane, toluene, and water

u Various materials (metal, glass, ceramics, polymers, composite materials, laminates)

u Temperature and electrical stability, with good dielectric properties

u Easy to use - fast drying, no need for post curing

u Designed for spray applications, but can also be dispensed by immersion or syringe methods

Product Usage

u pcb

u Moisture and corrosion prevention of electronic components

technical parameter

Product packaging

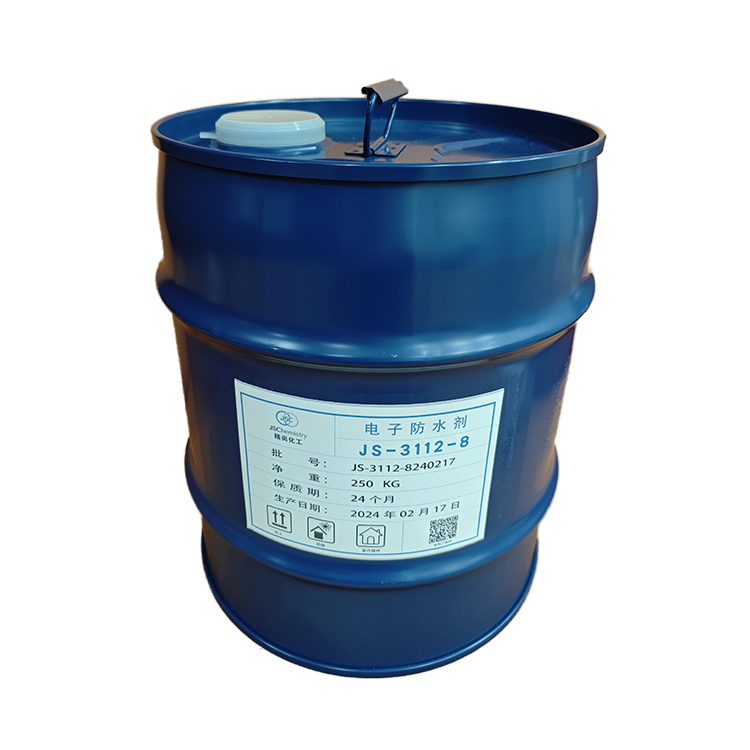

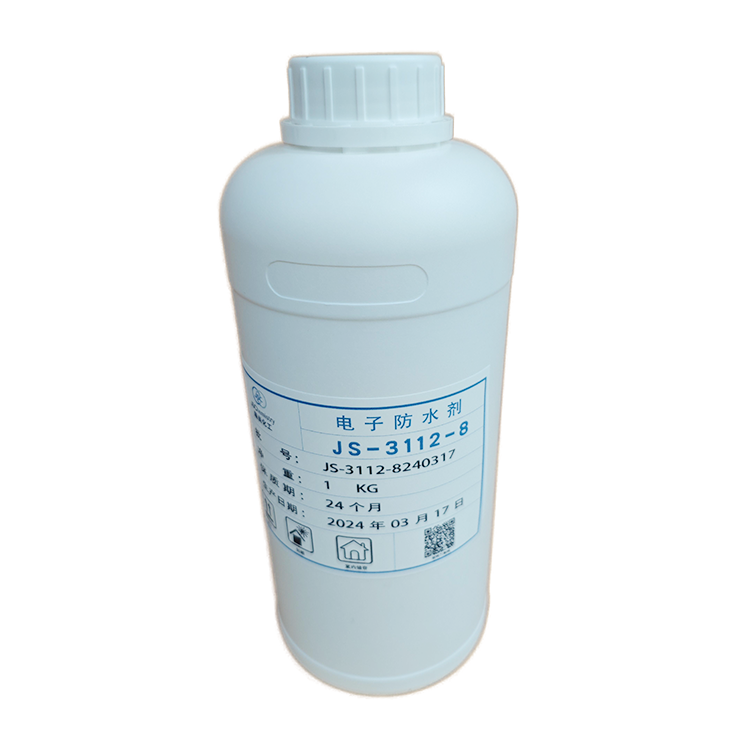

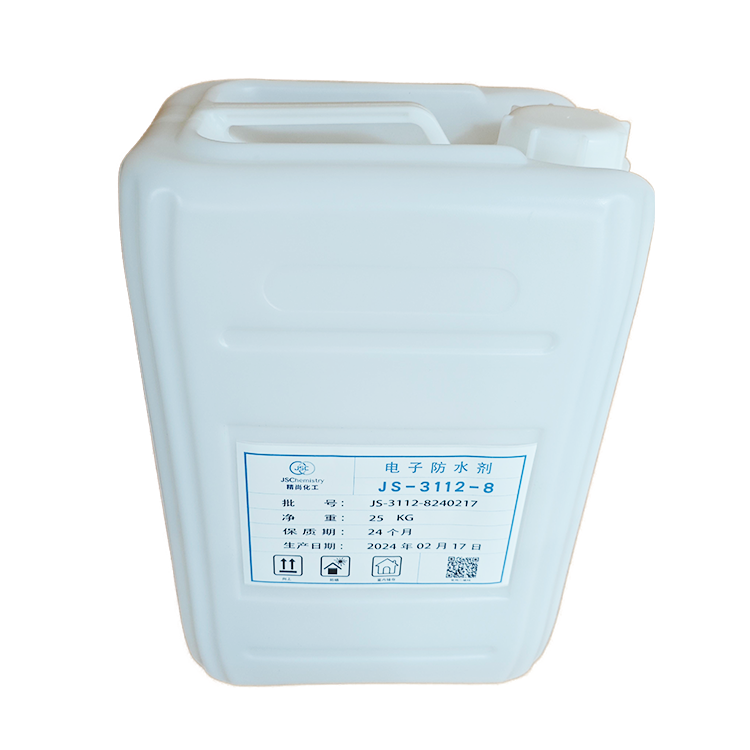

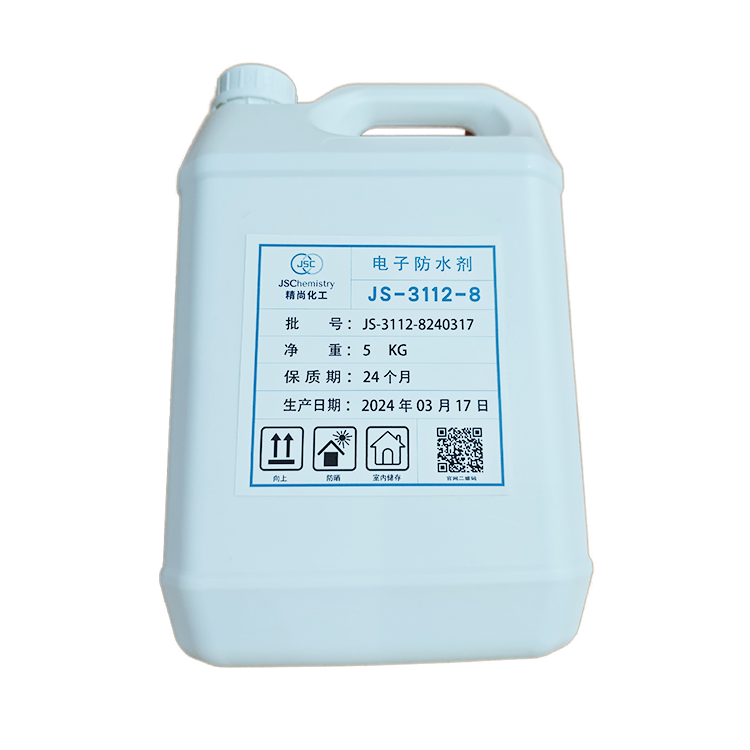

JS-3112-8 electronic waterproofing agent should be packaged in a clean, dry, and free of other impurities storage tank. During packaging, it should be lined with a rubber cover and tightly sealed. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.

Product storage

JS-3112-8 electronic waterproofing agent should be stored in a low-temperature, dry, and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years;  The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.

Precautions for use

u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.

u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention;  If in contact with skin, please wash thoroughly with soapy water.

u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
