JS-2130 Fluorocarbon Solvent
Product Information
Brand: Jingshang
Model: JS-2130
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 130 ℃
With the rapid increase in power density of single cabinets in large data centers, the requirements for heat dissipation are becoming increasingly high. Immersion liquid cooling technology has the characteristics of high energy efficiency, high density, high availability, and high reliability, and is gradually replacing air cooling technology as the ultimate solution for green and energy-saving cooling in data centers. JS-2130 fluorocarbon solvent has high insulation performance, high boiling point, superior environmental performance, and high compatibility with materials. It can be used as a single-phase liquid cooling material in immersed heat dissipation scenarios of data centers.
u Colorless, odorless, safe and non flammable, insoluble in water.
u Good material compatibility and thermal stability, high density.
u Low surface tension, low viscosity, low boiling point, and high latent heat of vaporization.
u Environmentally friendly, with zero ODP value, and no damage to ozone.
u Safe to use, with good insulation performance and no damage to electronic precision equipment, it will not harm electronic components and circuits.
u The dielectric constant and dielectric loss are low, which does not affect signal transmission.
u Insoluble with water to avoid damage to components caused by moisture.
u Thermal transfer cooling working fluid used for semiconductor dry etching, wafer testing, packaging, etc;
u Thermal conductivity and cooling working fluid for various data processing electronic devices;
u Electronic product cleaning and processing agents;
u As an intermediate for synthesizing fluorinated surfactants and other fluorinated chemicals;
u Solvent for anti fingerprint coatings such as electronic displays.
apparent | Clear, colorless |
boiling point | 130 ℃ |
Liquid density (25 ℃) | 1.82 g·mL-1 |
Saturated vapor pressure (25 ℃) | 1.516 kPa |
Kinematic viscosity (25 ℃) | 1.274 mm2·s-1 |
Thermal conductivity (25 ℃) | 0.0617 W∙m-1∙k-1 |
Dielectric strength (2.5 mm) | >40 kV |
Dielectric loss (1MHz) | zero point zero zero zero four three five |
Ozone Depletion Potential (ODP) | 0 |
smell | tasteless |
freezing point | -82 ℃ |
flash point | nothing |
Latent heat of vaporization | 82.8 kJ·kg-1 |
Specific heat (25 ℃) | 1.162 J·g-1 ·K-1 |
surface tension | 12.89 mN·m-1 |
Dielectric constant (1MHz) | two point zero nine |
Volume resistivity (25 ℃) | ≥1×1015 Ω·mm |
Global warming potential （GWP） | ＜200 |

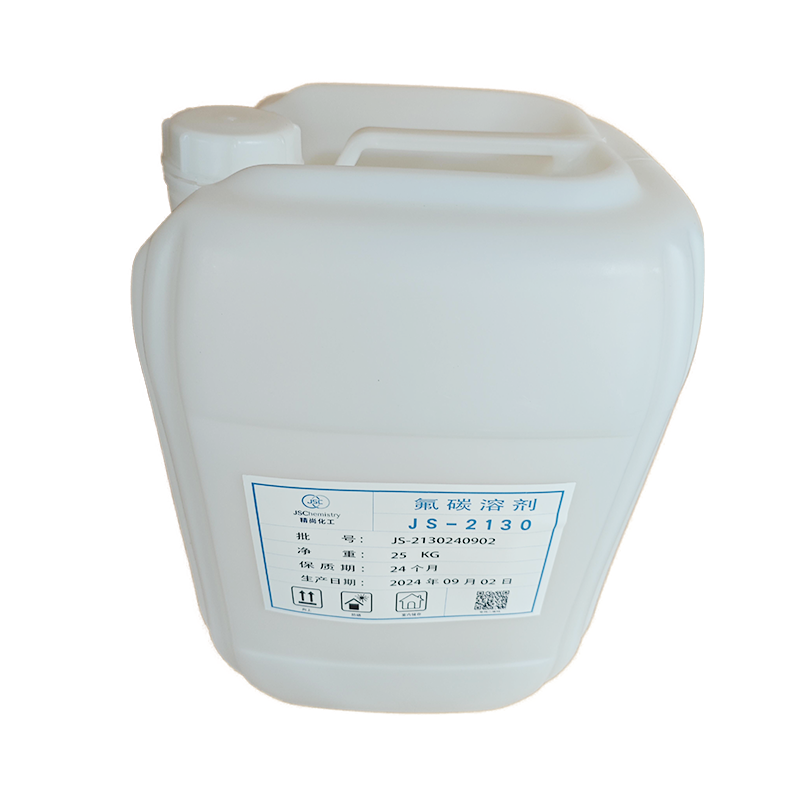

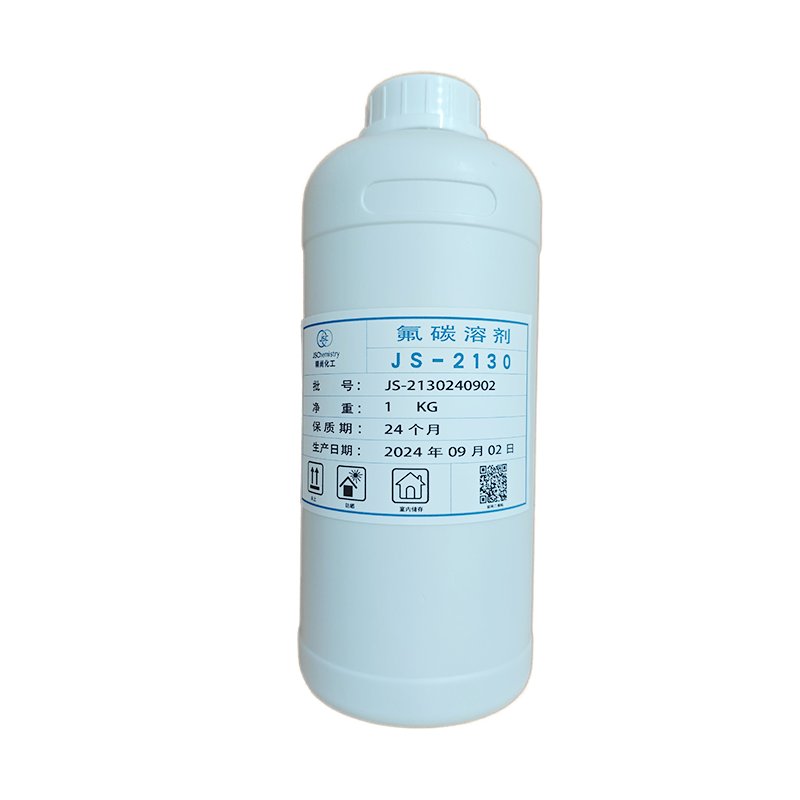

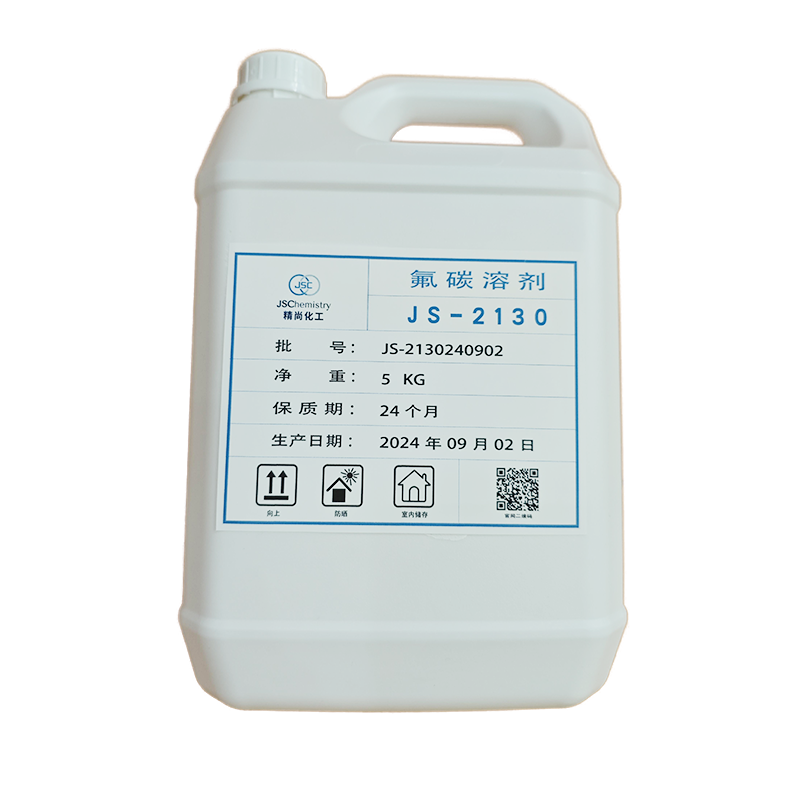

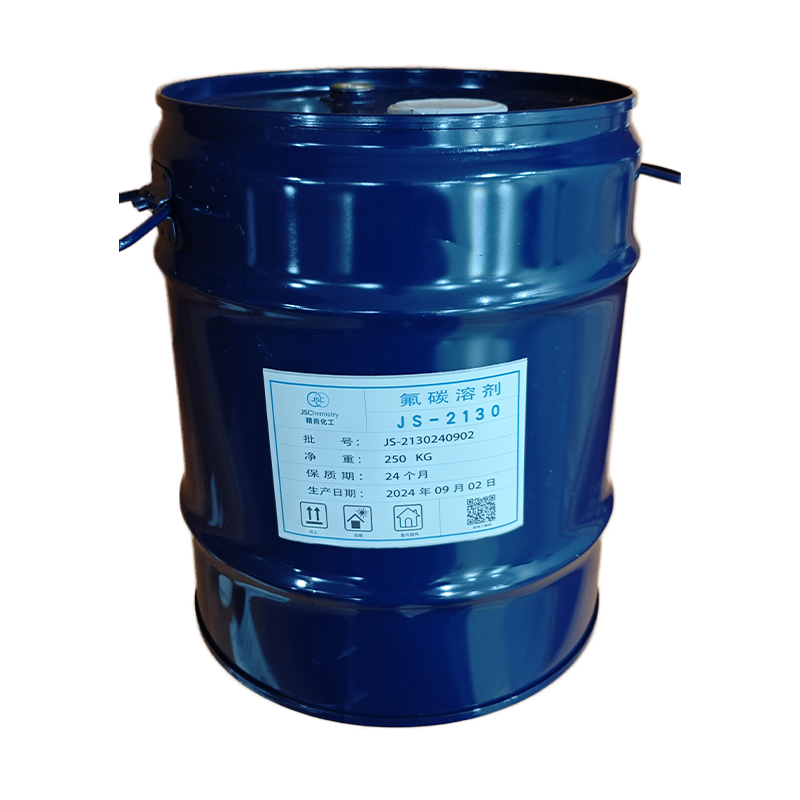

JS-2130 fluorocarbon solvent should be packaged in a clean, dry, and free of other impurities storage tank. The packaging should be lined with rubber caps and tightly sealed. 1KG/barrel, 5KG/barrel, and 25KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-2130 fluorocarbon solvent should be stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
