JS-2077 Fluorocarbon Solvent
Product Information
Brand: Jingshang
Model: JS-2077
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 77 ℃
JS-2077 fluorocarbon solvent is a transparent, colorless, odorless, and non flammable liquid with superior environmental performance and good material compatibility. It can be used as a heat transfer fluid in fields such as energy storage. At the same time, it can also be widely used as an engineering fluid for insulation testing, equipment cleaning, cooling fluid for high-speed train traction transformers, and special solvents. Characteristics: Colorless, odorless, safe and non flammable, insoluble in water, good material compatibility and thermal stability, high density, low surface tension, low viscosity.
u Environmentally friendly and clean, safe to use, good insulation performance, no damage to electronic precision equipment, and will not harm electronic components and circuits.
u Insoluble with water to avoid damage to components caused by moisture.
u The structure is stable and can be used for a long time without introducing other impurities, while maintaining its performance unchanged.
u Thermal conduction fluid, cooling medium;
u Live cleaning equipment, insulation fluid;
u Electronic precision cleaning, optical cleaning, dehydration cleaning;
u Hydraulic transmission fluid, electronic equipment sealing isolation fluid;
u Solvent diluents, lubricant diluents, solvents for special purposes, etc.
Appearance and Characteristics | Colorless Transparent Liquid |
smell | tasteless |
acid value | Not applicable |
boiling point | 77 ℃ |
Steam density | No information available |
density | 1.757 g·mL-1（25 ℃) |
thermal conductivity | 0.0608 W∙m-1∙K-1 |
specific heat | 1.223 J·g-1 ·K-1 |
Kinematic viscosity | 0.7772 mm2·s-1 |
surface tension | 14.04 mN·m-1 |
Dielectric strength | ＞35.5 kV（2.5 mm） |
Dielectric constant | 2.07 （1 MHz） |
Dielectric loss | 0.00056 （1 MHz） |
Volume resistivity | 2.994×1015 Ω·mm |
Octanol/water partition coefficient | No information available |
Spontaneous combustion temperature | No information available |
decomposition temperature | No information available |
Combustion heat | No information available |
Evaporation rate | No information available |
Flammability (solid, gas) | No information available |
flash point | No flash point |
Ignition point | No ignition point |
Explosion limit | No information available |
GWP | ＜120 |
ODP | 0 |

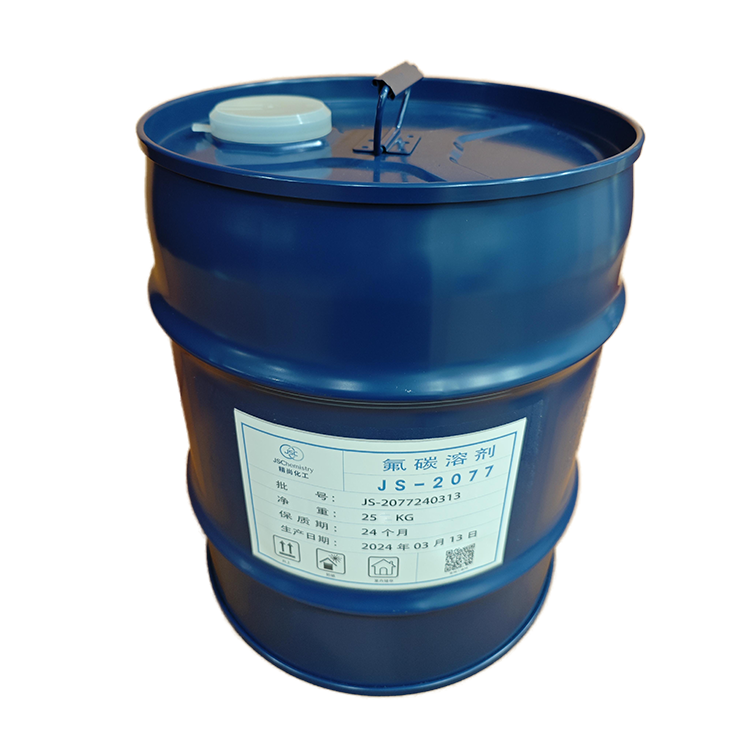

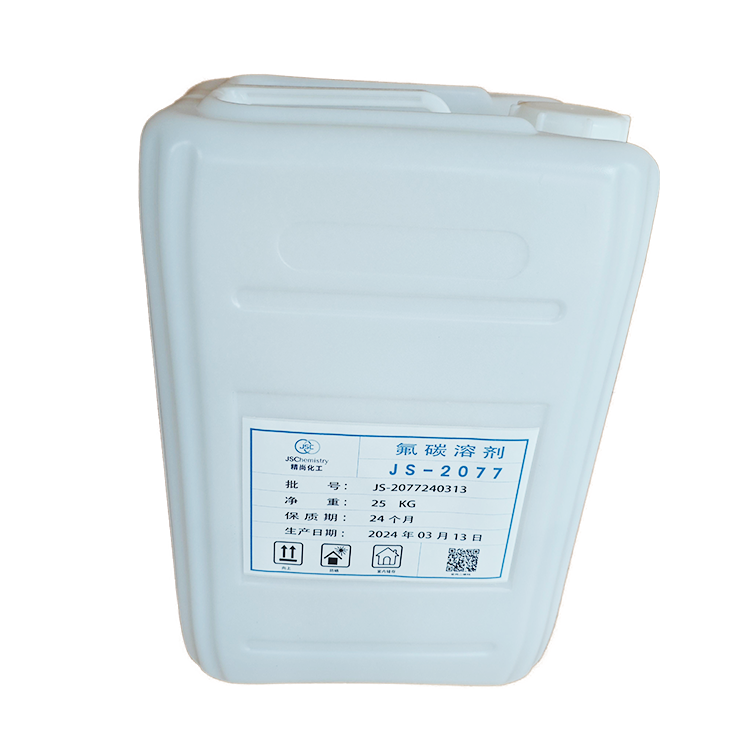

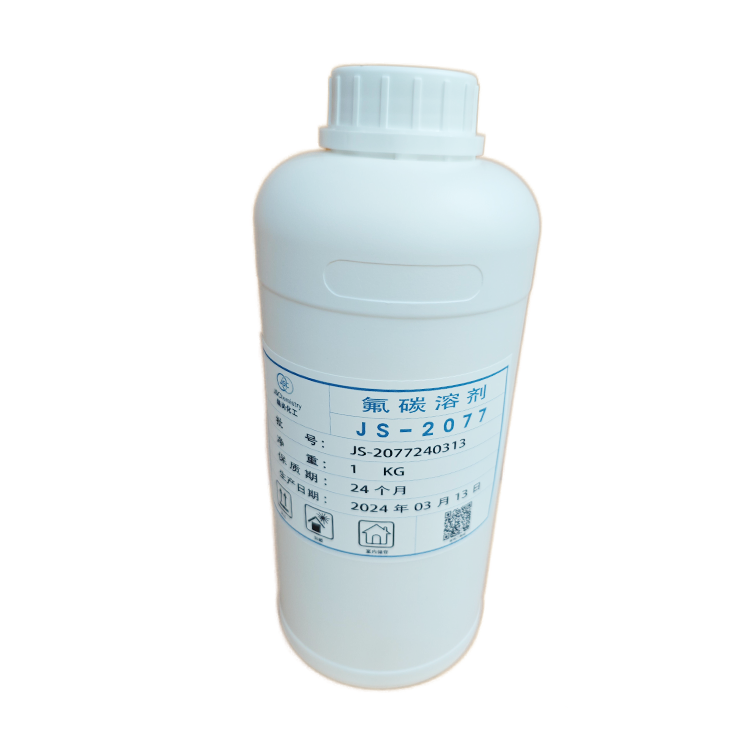

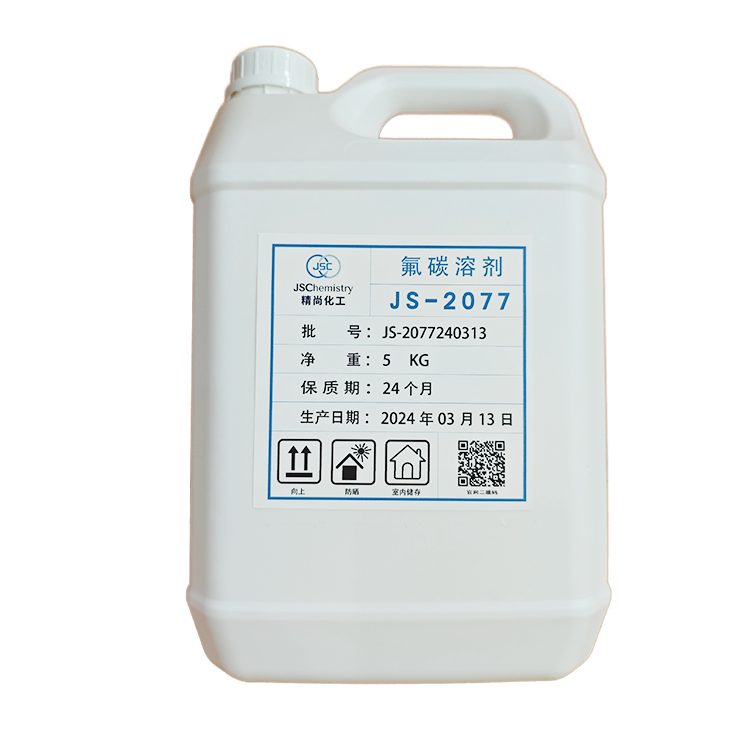

JS-2077 fluorocarbon solvent should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-2077 fluorocarbon solvent is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
