JS-2052 Fluorocarbon Solvent
Product Information
Brand: Jingshang
Model: JS-2052
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 52 ℃
JS-2052 fluorocarbon solvent is a clear, colorless, and low odor liquid designed to replace ozone depleting substances (ODSs) and compounds with high global warming potential (GWPs) such as sulfur hexafluoride (SF6) and hydrofluorocarbons (HFCs) such as HFC-134a and HFC 245fa. JS-2052 fluorocarbon solvent is an advanced heat transfer fluid that balances customers' needs for physical, thermal, and electrical performance, and has ideal environmental performance. It can be used for applications such as power electronics cooling and waste heat recovery.
u Ultra low global warming potential
u Non ozone depletion
u The safety during use is very high
u Low viscosity
u high molecular weight
u Low pour point
u organic Rankine cycle
Diesel engine
alternator
Geothermal applications
Solar energy applications
u Electronic device cooling (single-phase or two-phase).
Power electronic devices, such as IGBTs or inverters.
Transformers and other equipment (replacement of sulfur hexafluoride)
u Computer/Data Center Cooling
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | A small amount of odor |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | -108 ℃ |
Boiling point/initial boiling point/boiling range: | 52 ℃ [@ 101,324.72 Pa ] |
Flash point: | No flash point |
Evaporation rate: | >1. No unit or not applicable. [Reference standard: molar ratio=1] |
Flammability (solid, gas): | Not applicable |
Combustion limit range (lower limit): | Not detected |
Burning limit range (upper limit): | Not detected |
Vapor pressure: | 40.4 kPa [@ 25 ℃ ] |
Steam density/steam relative density: | 11.6 [Reference standard: Air=1] |
Density: | 1.6 g/ml |
Relative density: | 1.6 [@ 20 ℃] [Reference standard: Water=1] |
Solubility Water solubility: | 0 |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | No information available |
Spontaneous combustion temperature: | Not applicable |
Decomposition temperature: | No information available |
Viscosity/dynamic viscosity: | 0.6 mPa-s [@ 25 ℃ ] |
molecular weight | No information available |
Volatile Organic Compounds | 1600 g/l [Test method: Calculated according to SCAQMD standard 443.1] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | 1600 g/l [Test method: Calculated according to SCAQMD standard 443.1] |

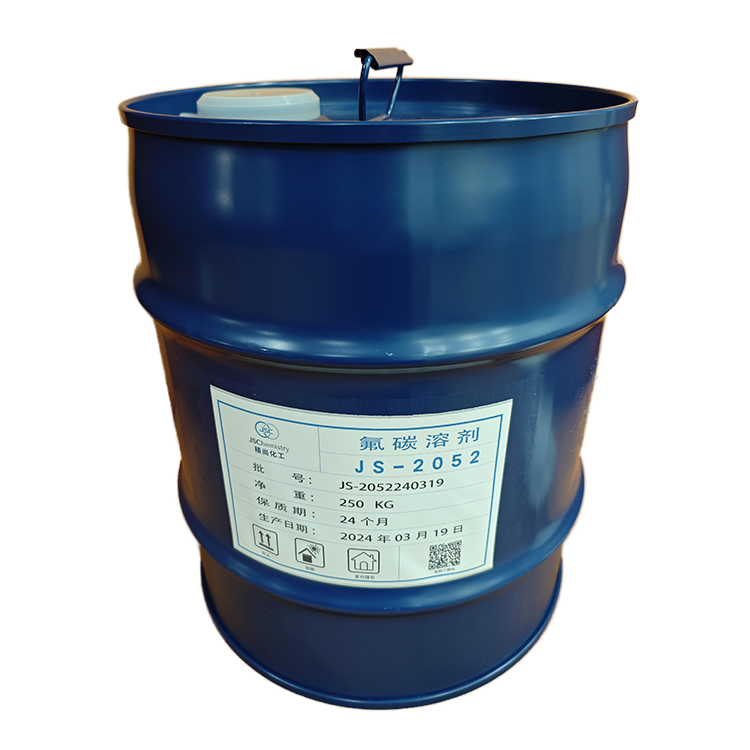

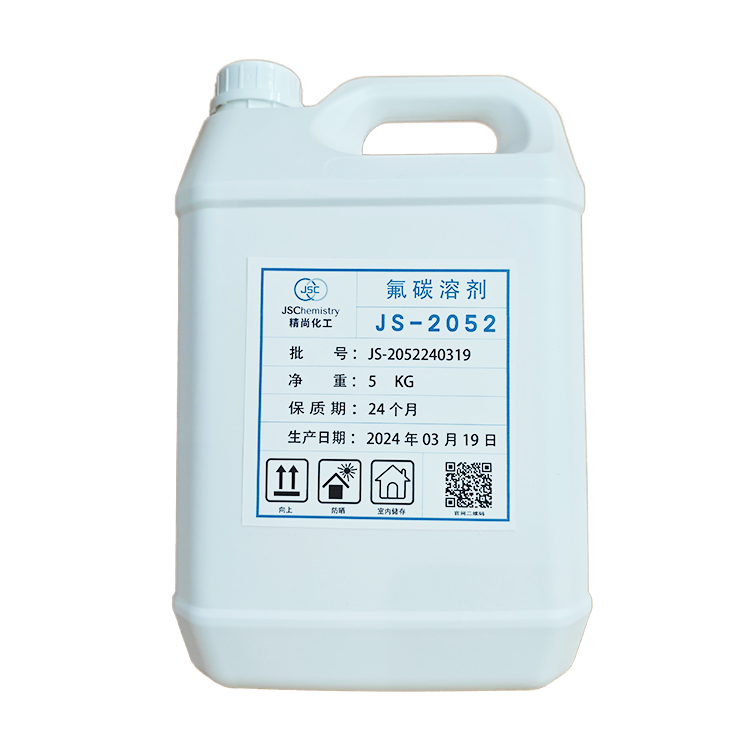

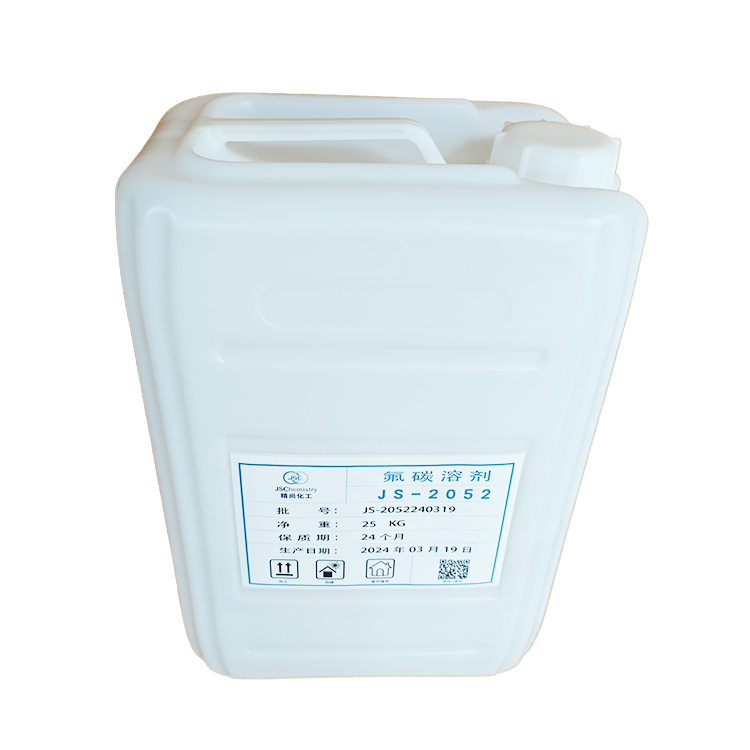

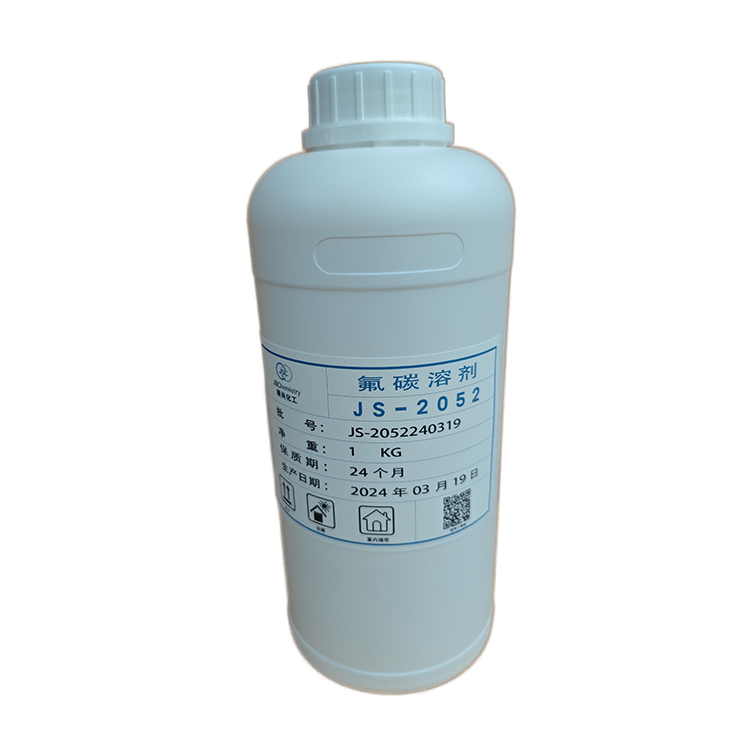

JS-2052 fluorocarbon solvents should be packaged in clean, dry, and free of other impurities storage tanks, with rubber covers lined and tightly sealed during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-2052 fluorocarbon solvent should be stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
