JS-1162 Electronic Fluorination Liquid
Product Information
Brand: Jingshang
Model: JS-1162
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 162 ℃
JS-1162 electronic fluorine liquid has excellent heat transfer ability, good insulation performance, superior environmental performance, and good material compatibility. It is currently the mainstream liquid cooled working fluid used in semiconductor manufacturing processes such as dry etching, wafer testing, and packaging testing; It can also be widely used as an engineering fluid for leak detection, thermal shock testing, insulation testing, high-temperature aging testing, and other purposes; Its ability to withstand high voltage shocks can also be used as a cooling fluid for traction transformers in high-speed trains.
u Colorless, odorless, safe and non flammable
u Insoluble with water, high density, low surface tension
u High boiling point, good thermal stability, and material compatibility
u Environmental protection, zero ODP value, no damage to the ozone layer
u Good insulation performance, no damage to electronic precision equipment, and no damage to electronic components and circuits;
u Insoluble with water to avoid damage to components caused by moisture.
u Semiconductor dry etching, wafer testing, packaging and other heat transfer cooling working fluids;
u Cooling working fluid for traction transformers of high-speed trains;
u High temperature electronic product cleaning agent;
u Widely used engineering fluids for side leakage, thermal shock testing, insulation testing, high-temperature aging testing, etc.
Appearance and Characteristics | Colorless Transparent Liquid |
smell | Slight ether odor |
Odor threshold | No information available |
Melting point/freezing point | -59℃ |
Boiling point, initial boiling point, and boiling range | 162 ℃ |
Burning limit or explosion limit | No information available |
Flash point (closed cup) | Not applicable |
Spontaneous combustion temperature | Not applicable |
decomposition temperature | 550℃ |
PH value | Not applicable |
Vapor pressure/saturated vapor pressure | 4kPa（25℃) |
Vapor density/relative vapor density | No information available |
Density/relative density | 1.65g/ml（25℃) |
Combustion heat | No information available |
Solubility | Not miscible with water |
Octanol/water partition coefficient | No information available |
viscosity | 3.19cst（25℃) |
critical temperature | No information available |
critical pressure | No information available |
Flammability (solid, gas) | Not applicable |

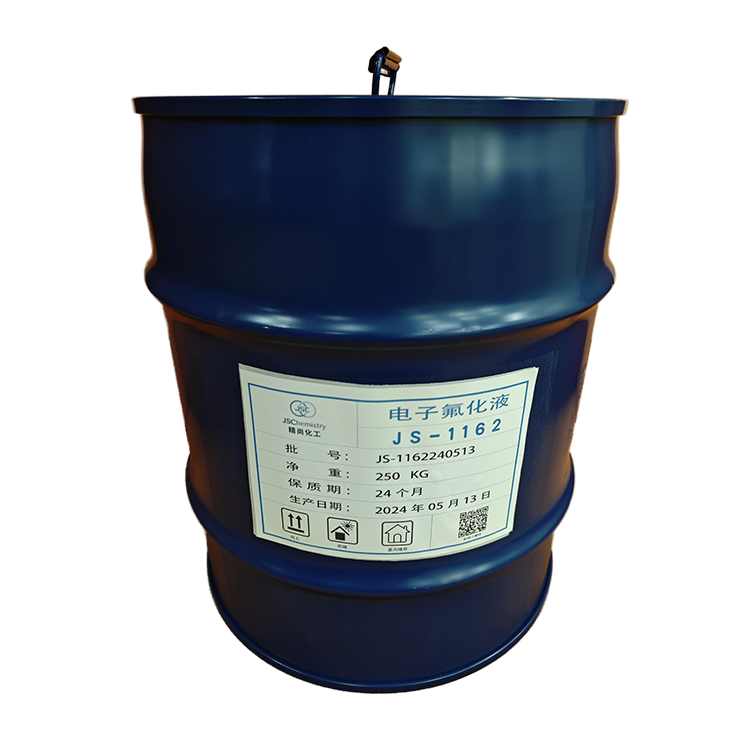

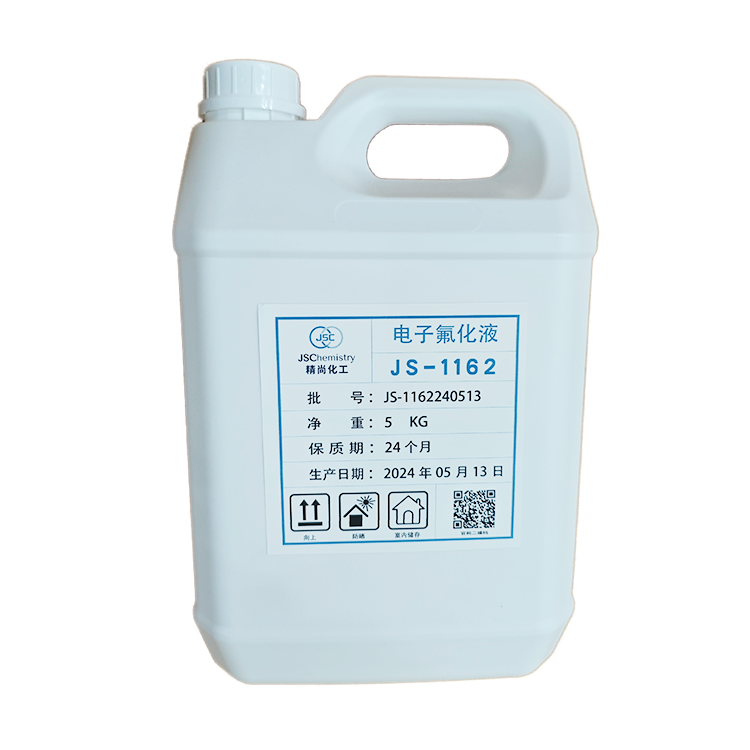

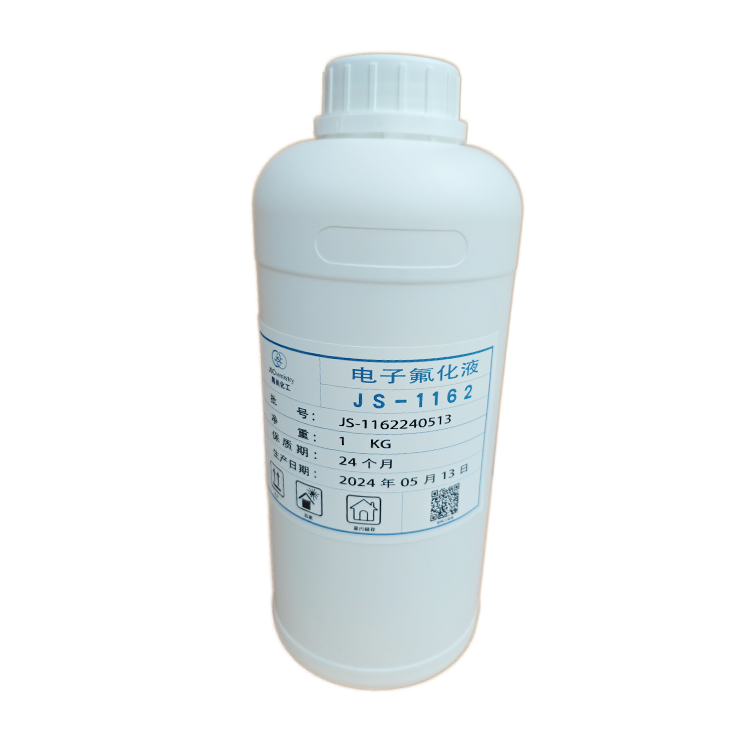

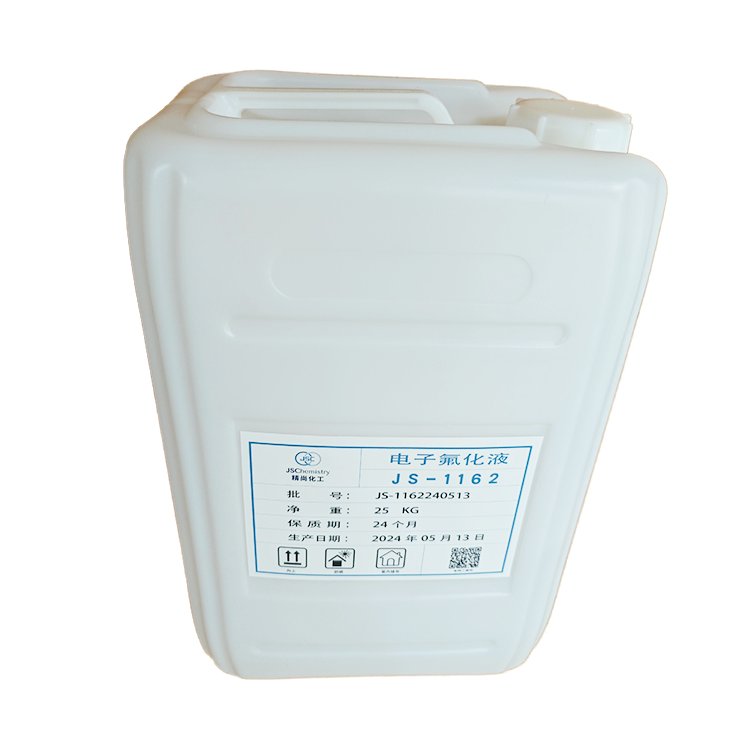

JS-1162 electronic fluorine solution should be packaged in a clean, dry, and free of other impurities storage tank, with a rubber lined cover and encrypted seal during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-1162 electronic fluoride solution is stored in a low-temperature, dry, and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
