JS-1078-E Electronic Fluorinated Liquid
Product Information
Brand: Jingshang
Model: JS-1078-E
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 20KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 78 ℃
JS-1078-E electronic fluorine liquid is a low viscosity, colorless, transparent perfluorinated chemical with good chemical inertness, electrical insulation properties, thermal conductivity, and unique low surface tension. Widely used in the electronic manufacturing industry to meet customers' diverse requirements in heat conduction, manufacturing, and testing. The chemical inertness of JS-1078-E electronic fluorine solution gives it good material compatibility, and it will not cause harm even when in direct contact with sensitive electronic components. The tested components also do not need to be cleaned. At the same time, this series of products has the characteristics of being non-toxic, non flammable, and odorless, making them very safe to use.
u Non flammable
u Non-conductive
u Low toxicity
u Low Global Warming Potential (GWP)
u Ozone Zero Depletion Potential
u Excellent effect on removing ion pollution
u Low surface tension penetrates narrow spaces to improve cleanliness
u Cleaning, rinsing, and drying agents
Cleaning of oil, grease, and wax
u Application of special solvents
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Slightly odorous |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | Not applicable |
Boiling point/initial boiling point/boiling range: | 78 ℃ |
Flash point: | No flash point [detailed information: testing method according to ASTM D 3278-96] |
Evaporation rate: | No information available |
Flammability (solid, gas): | |
Combustion limit range (lower limit): | 7.3% volume ratio [Detailed information: @ 25 C, testing method according to ASTM E-681-98 (Appendix A1)] |
Burning limit range (upper limit): | 15% volume ratio [detailed information: @ 25 C, testing method according to ASTM E-681-98 (Appendix A1)] |
Vapor pressure: | 46,662.7 Pa [@ 25 ℃ ] |
Vapor density: | No information available |
Density: | 1.28 g/ml |
Relative density: | 1.28 [Reference standard: Water=1] |
Solubility Water solubility: | Negligible |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | No information available |
Spontaneous combustion temperature: | 396 ℃ |
Decomposition temperature: | Not applicable |
Viscosity: | 0.45 mPa-s |
molecular weight | No information available |
Volatile Organic Compounds | 896 g/l [Test method: South Coast Air Quality Management Agency of the United States] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | 896 g/l [Test method: Calculated according to SCAQMD standard 443.1] |

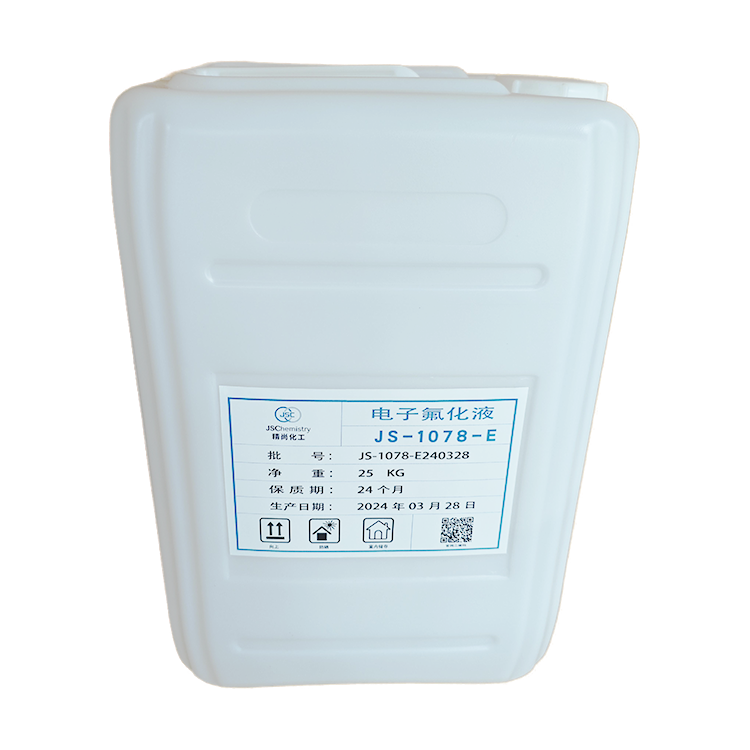

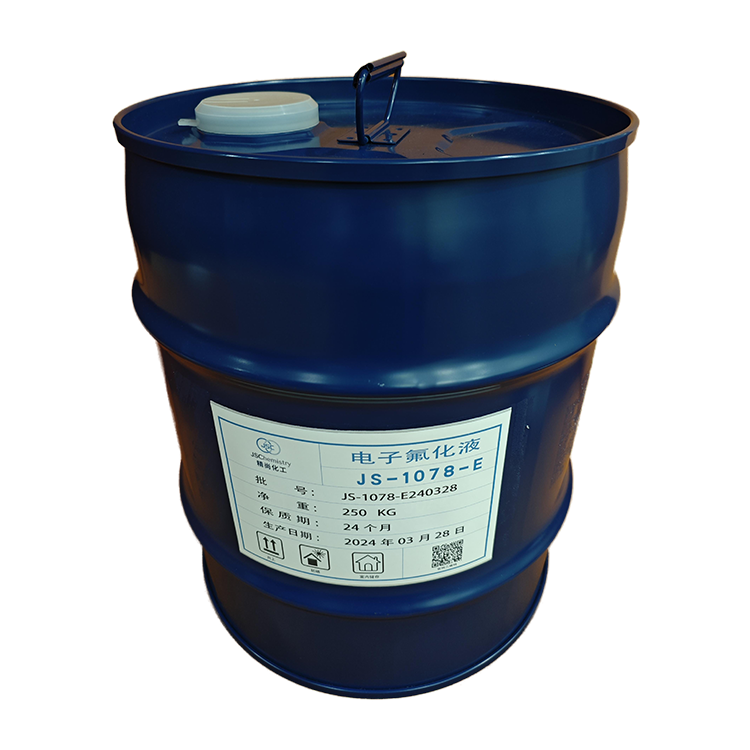

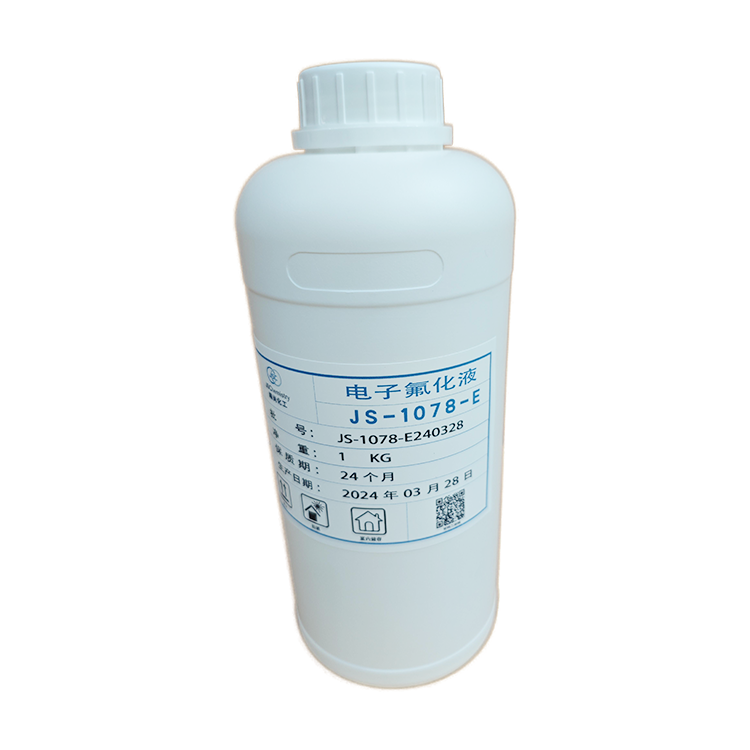

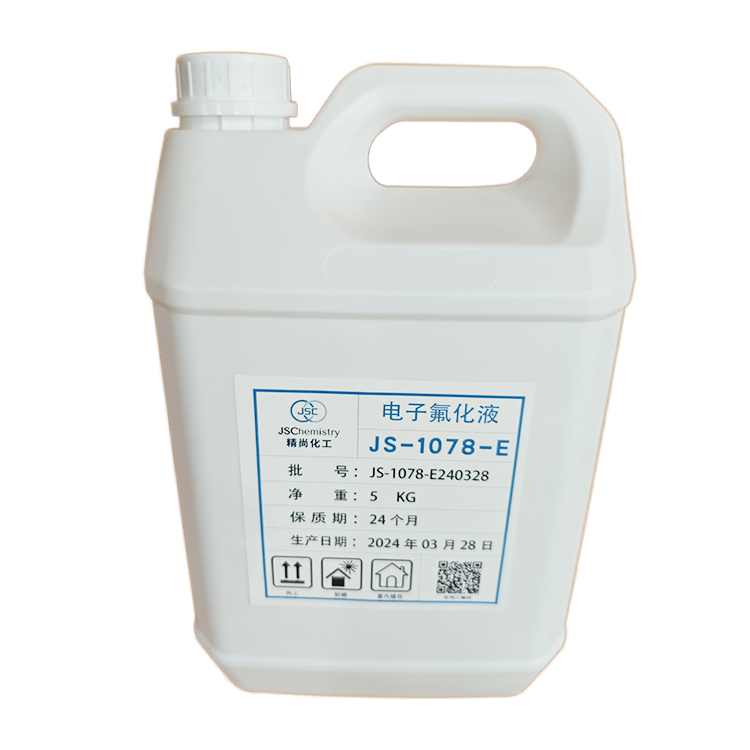

JS-1078-E electronic fluorine solution should be packaged in a clean, dry, and free of other impurities storage tank. During packaging, it should be lined with a rubber cover and sealed tightly. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-1078-E electronic fluoride solution should be stored in a low-temperature, dry, and ventilated place (avoiding direct sunlight exposure). The shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
