JS-1078-A Electronic Fluorination Liquid
Product Information
Brand: Jingshang
Model: JS-1078-A
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 20KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 78 ℃
JS-1078-A electronic fluorinating liquid is a mixture composed of hydrofluoroether methyl non fluorobutyl ether (C4F9OCH3), ethyl non fluorobutyl ether (C4F9OC2H5), trans-1,2-dichloroethylene (t-DCE), and isopropanol. This solvent mixture is a mixture of azeotropes. Analysis was conducted during evaporation and extended use in steam degreasers, and it was found to have consistent composition, which is effective for medium to heavy-duty degreasing and degreasing applications. 72DA fluid is ideal for a wide range of electronic products and other precision cleaning applications. It intends to replace chlorofluorocarbons, HCFCs, hydrofluorocarbons, nPBs, and chlorinated solvents. This product has zero ozone depletion potential and other good environmental, health, and safety features.
u Safe and non flammable
u Good solubility, insoluble in water
u Good thermal stability
u Zero ODP value, no damage to the ozone layer
u Low greenhouse effect value
u Excellent material compatibility
u Cleaning, rinsing, and drying agents
u Cleaning of rosin flux residue, oil, grease, and wax
u Professional electronic cleaning heat conduction
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Slightly odorous |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | Not applicable |
Boiling point/initial boiling point/boiling range: | 78 ℃ |
Flash point: | No flash point [detailed information: tested according to ASTM D-3278-96 e-1 method] |
Evaporation rate: | No information available |
Flammability (solid, gas): | |
Combustion limit range (lower limit): | 5.9% volume ratio [detailed information: tested according to ASTM Method E681-98 (Attachment A1)] |
Burning limit range (upper limit): | 14.5% volume ratio [detailed information: tested according to ASTM Method E681-98 (Attachment A1)] |
Vapor pressure: | 47,995.9 Pa [@ 25 ℃ ] |
Vapor density: | 2.26 [@ 25 ℃] [Reference standard: Air=1] |
Density: | 1.27 g/ml |
Relative density: | 1.27 [Reference standard: Water=1] |
Water solubility: | A small amount (less than 10%) |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | No information available |
Spontaneous combustion temperature: | 408 ℃ |
Decomposition temperature: | Not applicable |
Viscosity: | 0.4 mPa-s |
molecular weight | No information available |
Volatile Organic Compounds | 889 g/l [Test method: South Coast Air Quality Management Agency, United States] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | 889 g/l [Test method: According to the South Coast Air Quality Management Agency of the United States] |

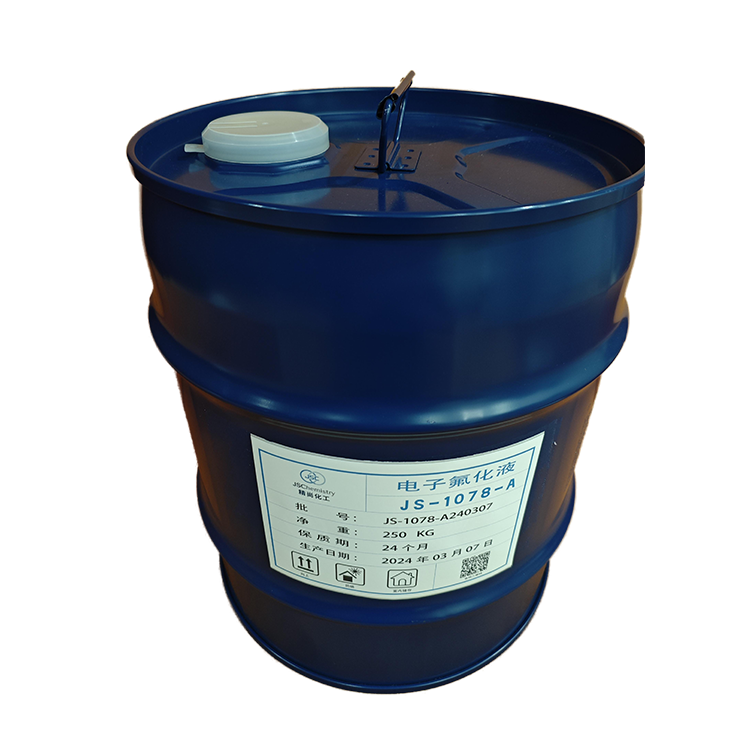

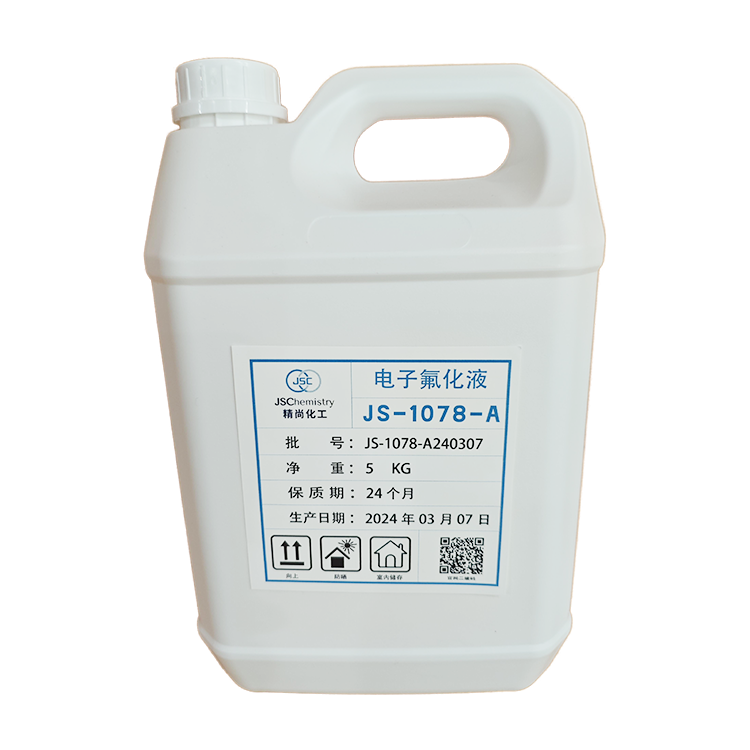

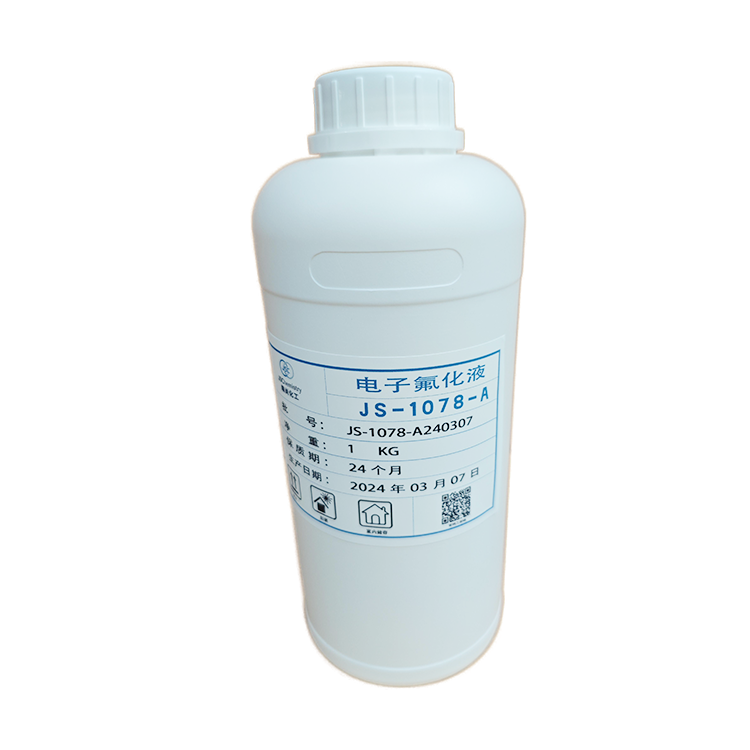

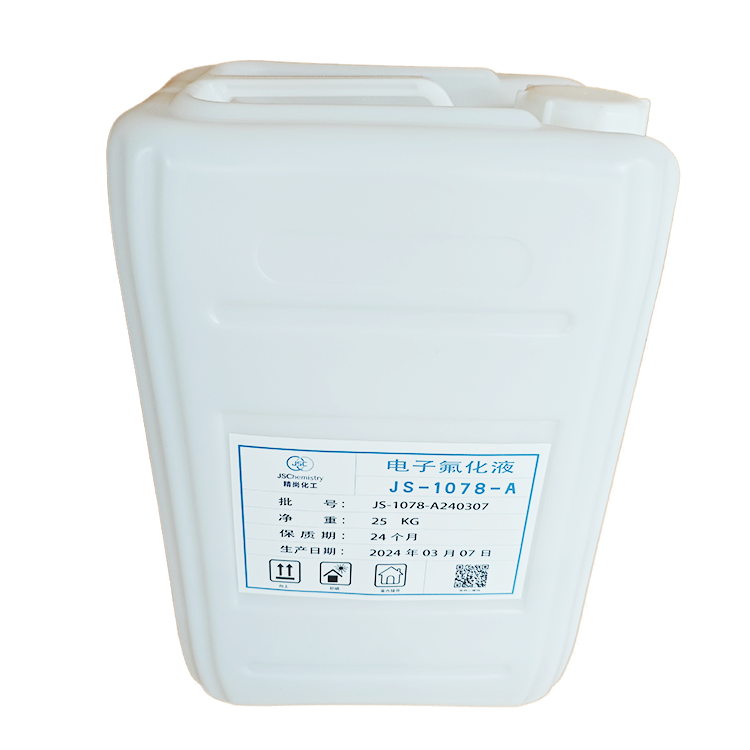

JS-1078-A electronic fluorine solution should be packaged in a clean, dry, and free of other impurities storage tank, with a rubber lined cover and encrypted seal during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-1078-A electronic fluoride solution is stored in a low-temperature, dry, and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
