JS-1078 Electronic Fluorination Liquid
Product Information
Brand: Jingshang
Model: JS-1078
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 20KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 78 ℃
JS-1078 electronic fluorinated liquid is a proprietary hydrofluoroether, ethoxy non fluorinated butane (C4F9OC2H5), which is a transparent, colorless, low odor fluid used in many applications to replace ozone depleting substances (ODSs), high global warming potential compounds (GWP), and chlorinated materials. JS-1078 electronic fluorinated liquid has a moderate boiling point and is extremely beneficial to the environment, human health, and safety, making it suitable for use as a thermal fluid and cleaning agent in lubricant deposition and various other applications in various industries.
u Colorless, odorless, low toxicity
u ODP value is zero
u Low surface tension
u Low viscosity
u Low latent heat of evaporation
u Thermal management
u Immersion cooling in data centers
u Immersion cooling of power electronic equipment
u Carrier solvent and then deposition
u Solvent cleaning and steam degreasing
u Spray formula
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Light odor |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | -138℃ |
Boiling point/initial boiling point/boiling range: | 78 ℃ |
Flash point: | No flash point |
Evaporation rate: | 33 [Reference standard: molar ratio=1] |
Flammability (solid, gas): | Not applicable |
Combustion limit range (lower limit): | 210 g/m3 [Detailed information: ASTM E681-94 method] |
Burning limit range (upper limit): | 1070 g/m3 [Detailed information: ASTM E681-94 method] |
Vapor pressure: | 14,532.1 Pa [@ 25 ℃ ] |
Steam density: | 9.1 [Reference standard: Air=1] |
Density: | 1.43 g/ml |
Relative density: | 1.43 [Reference standard: Water=1] |
Solubility Water solubility: | 0 |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | 4.2 [Detailed information: at 30 ° C] |
Spontaneous combustion temperature: | 375 ℃ [Detailed information: Test method ASTM E659-78] |
Decomposition temperature: | Not applicable |
Viscosity: | 0.4 mm2/sec |
molecular weight | No information available |
Percentage of volatile substances | 100% |
Volatile Organic Compounds | No information available |
Exempted anhydrous VOC solvents | No information available |

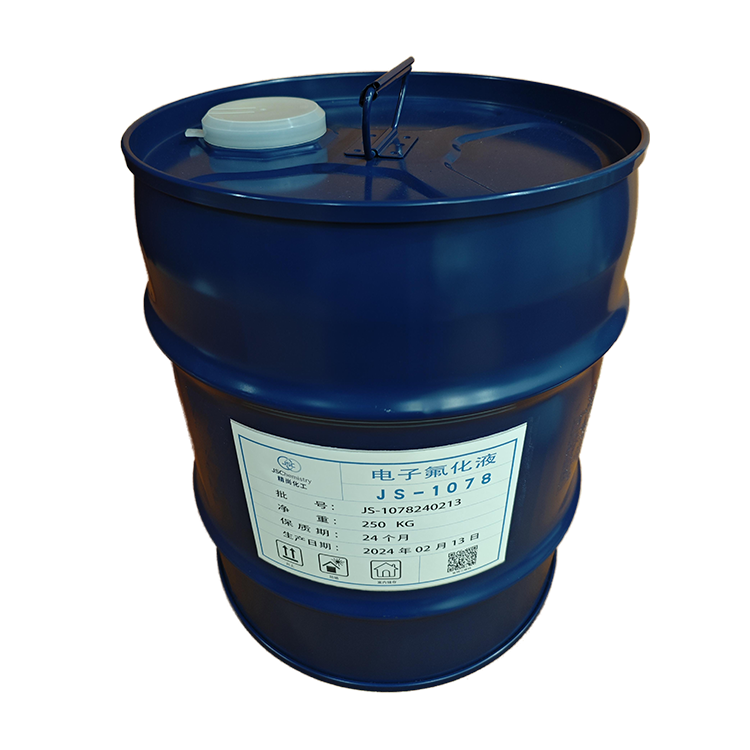

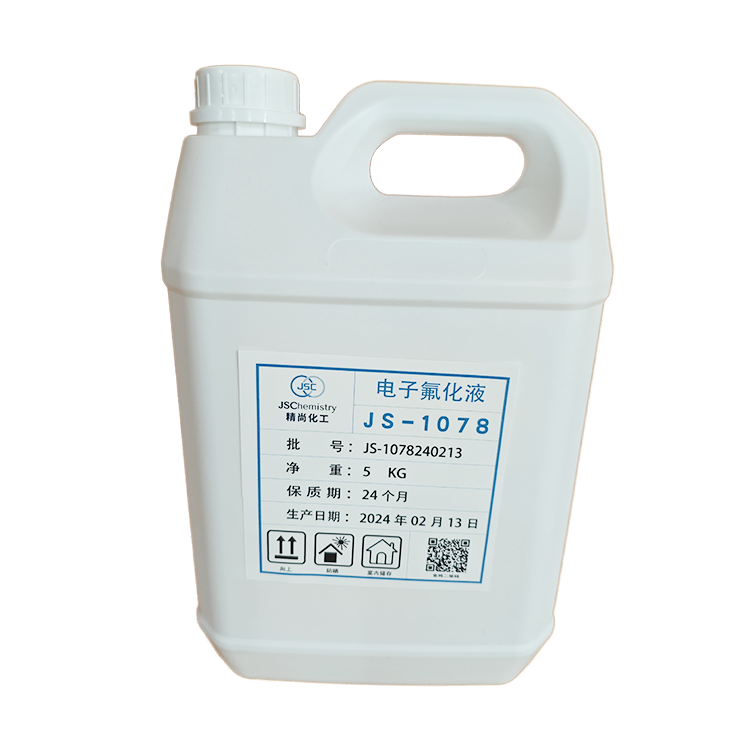

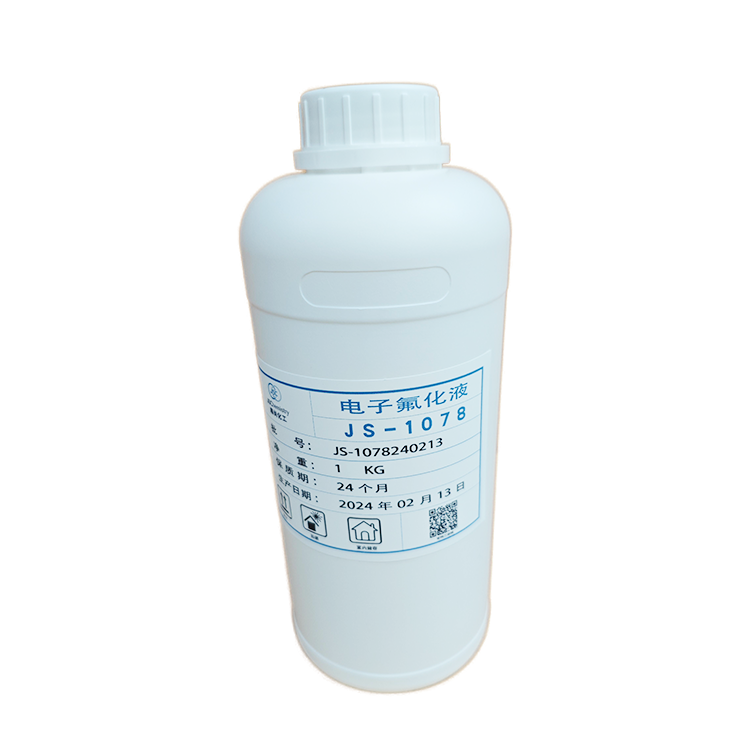

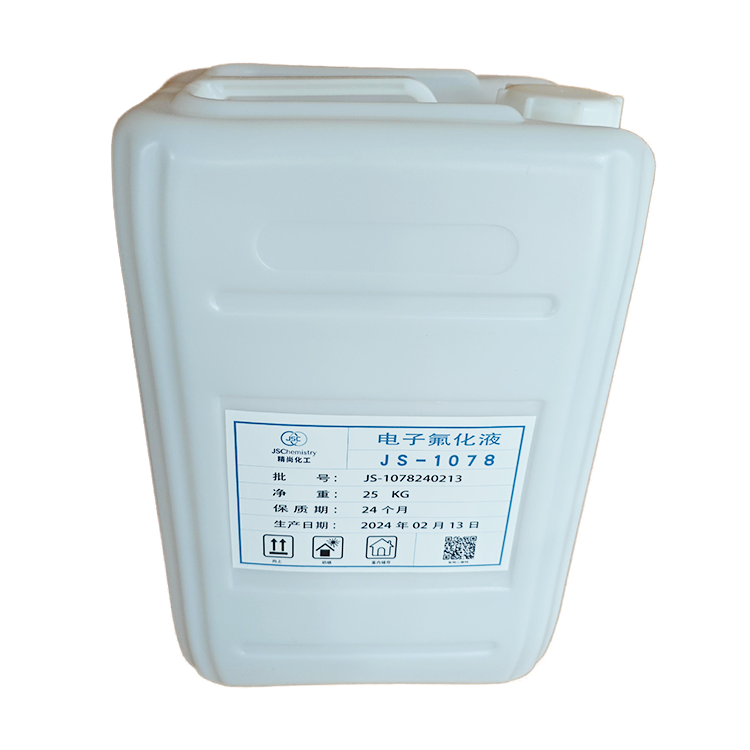

JS-1078 electronic fluorine solution should be packaged in a clean, dry, and free of other impurities storage tank, with a rubber lined cover and encrypted seal during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-1078 electronic fluoride solution is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
