JS-1063-PA Electronic Fluorination Liquid
Product Information
Brand: Jingshang
Model: JS-1063-PA
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 20KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 63 ℃
JS-1063-PA electronic fluorinated liquid is a hydrofluoroether, methoxy non fluorinated butane (C4F9OCH3), in a quasi azeotropic formula with isopropanol. This fluid is an ideal choice for lightweight cleaning and degreasing tasks, aimed at replacing ozone depleting materials such as CFCs 13, HCFC-14lb, and 1,1,1-trichloroethane in many applications. It has zero ozone depletion potential and other favorable environmental characteristics. JS-1063-PA electronic fluoride solution has low toxicity physical characteristics.
u Non flammable
u Non-conductive
u Low toxicity
u Low Global Warming Potential
u Ozone Zero Depletion Potential
u Low surface tension penetrates narrow spaces to improve cleanliness
u Precision cleaning, rinsing, and drying agents
Lightweight cleaning oil, grease, wax, fingerprints
u Used in combination with cosolvents to remove residual welding slag without clean flux.
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Slight alcohol odor |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | Not applicable |
Boiling point/initial boiling point/boiling range: | 63 ℃ |
Flash point: | No flash point [detailed information: tested according to ASTM D56-87 method] |
Evaporation rate: | 58 [Reference standard: molar ratio=1] |
Flammability (solid, gas): | |
Combustion limit range (lower limit): | 4% [Detailed information: The testing method is based on ASTM E681-94] |
Burning limit range (upper limit): | 16.7% [Details: Testing method based on ASTM E681-94] |
Vapor pressure: | 27,597.7 Pa [@ 25 ℃ ] |
Vapor density: | 7.1 [Reference standard: Air=1] |
Density: | 1.48 g/ml |
Relative density: | 1.48 [Reference standard: Water=1] |
Water solubility: | A small amount (less than 10%) |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | No information available |
Spontaneous combustion temperature: | 443 ℃ [Detailed information: ASTM E659 method] |
Decomposition temperature: | Not applicable |
Viscosity: | <=10 mPa-s [@ 23 ℃ ] |
molecular weight | No information available |
Volatile Organic Compounds | 67 g/l [Test method: South Coast Air Quality Management Agency, United States] |
Percentage of volatile substances | 100 % |
Exempted anhydrous VOC solvents | 67 g/l [Test method: Calculated according to SCAQMD standard 443.1] |

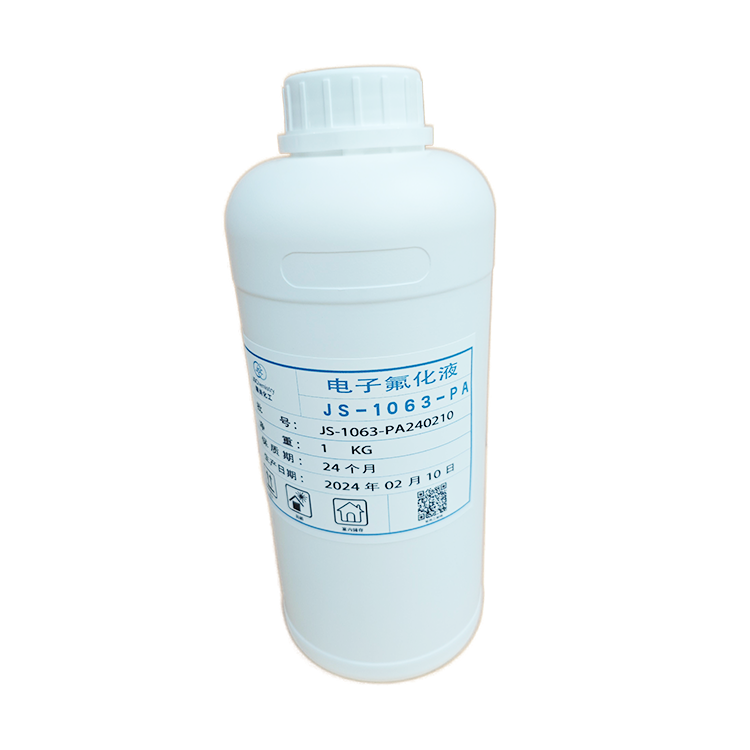

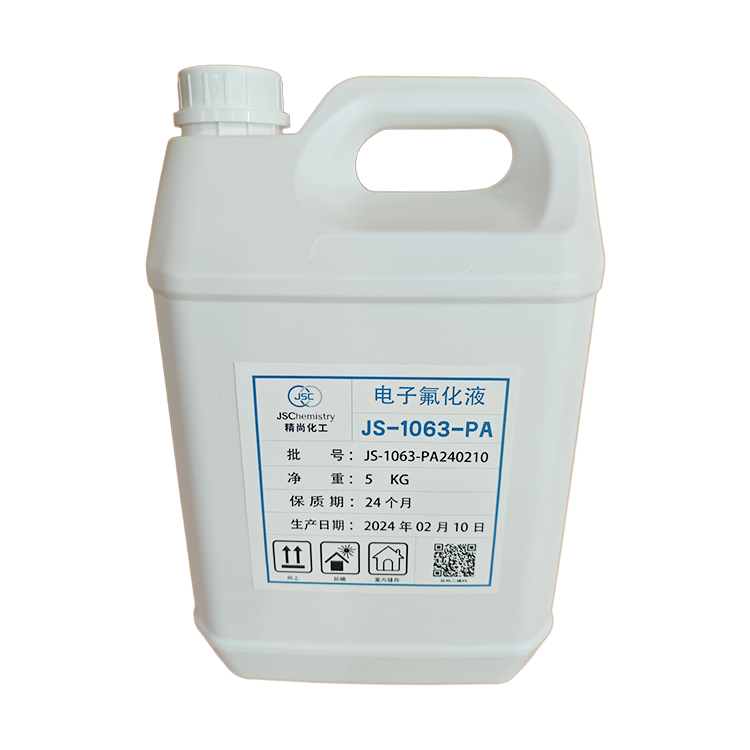

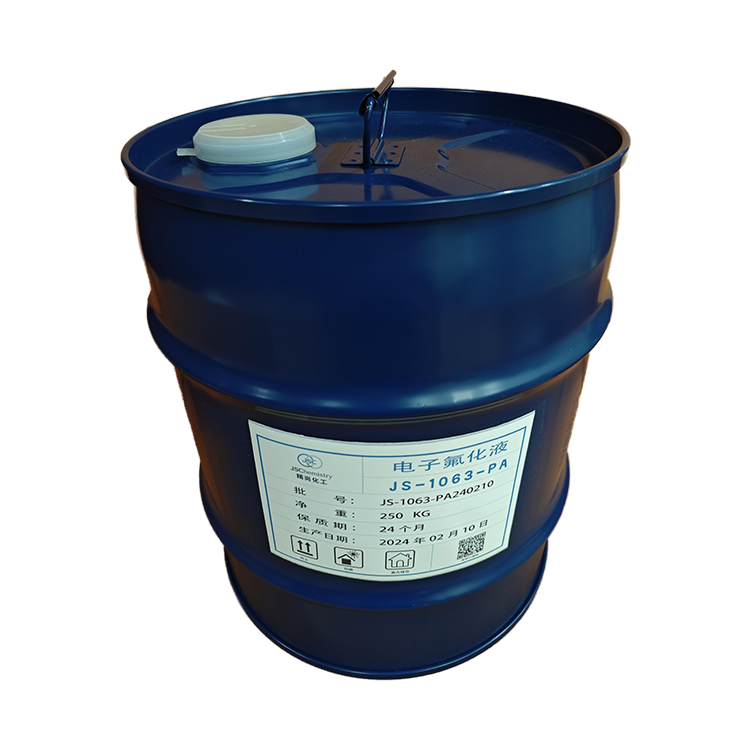

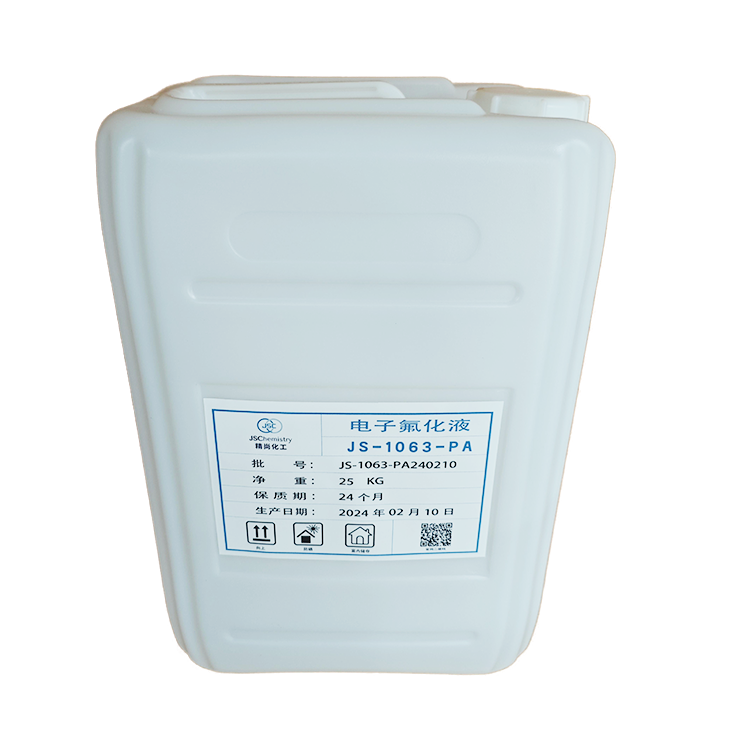

JS-1063-PA electronic fluoride solution should be packaged in a clean, dry, and free of other impurities storage tank, with a rubber lined cover and encrypted seal during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-1063-PA electronic fluoride solution should be stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance
