JS-1063DL Electronic Fluorination Liquid
Product Information
Brand: Jingshang
Model: JS-1063DL
Color: Transparent liquid
Specifications: 1KG/barrel, 5KG/barrel, 20KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 63 ℃
JS-1063DL electronic fluoride solution is a high-purity version of JS-1063, designed to meet some of the most demanding needs in the electronics industry. It is used for precision cleaning and serves as a deposition solvent when high-purity materials are required. The product specifications strictly control the following pollutants: ion particles, metal non-volatile residues, JS-1063DL fluid used in the disk drive industry for depositing lubricants and lubricant additives, as well as cleaning during the processing of universal joint components. It can also be used for other electronic, aerospace, and medical industrial applications that require non flammable, high-purity, and consistent products.
u Non flammable
u Non-conductive
u Compatible with plastics
u Low toxicity
u Low Global Warming Potential
u Ozone Zero Depletion Potential
u Exemption from solvents (US Environmental Protection Agency)
u Low surface tension penetrates narrow spaces to improve cleanliness
u High purity
u Deposit lubricants and lubricant additives onto hard drive media
u Cleaning during the Processing of Head Universal Joint Components
u Particle removal in high reliability devices
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Slight ether odor |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | -135 ℃ |
Boiling point/initial boiling point/boiling range: | 63 ℃ [@ 101,324.72 Pa ] |
Flash point: | No flash point |
Evaporation rate: | 49 [Reference standard: molar ratio=1] |
Flammability (solid, gas): | |
Combustion limit range (lower limit): | Not detected |
Burning limit range (upper limit): | Not detected |
Vapor pressure: | 26,931 Pa [@ 25 ℃ ] |
Steam density: | 8.6 [Reference standard: Air=1] |
Density: | 1.5 g/ml |
Relative density: | 1.5 [Reference standard: Water=1] |
Water solubility: | 12 ppm [@ 77 ºF] |
Solubility - Non water soluble: | No information available |
N-Octanol/Water Partition Coefficient: | 3.9 [Detailed information: at 30 ° C] |
Spontaneous combustion temperature: | 405 ℃ [Detailed information: (ASTM E659-84)] |
Decomposition temperature: | Not applicable |
Viscosity: | 0.6 mPa-s [@ 23 ℃ ] |
molecular weight | No information available |
Percentage of volatile substances | 100% |
Volatile Organic Compounds | [Details: Exemption] |
Exempted anhydrous VOC solvents | [Details: Exemption] |

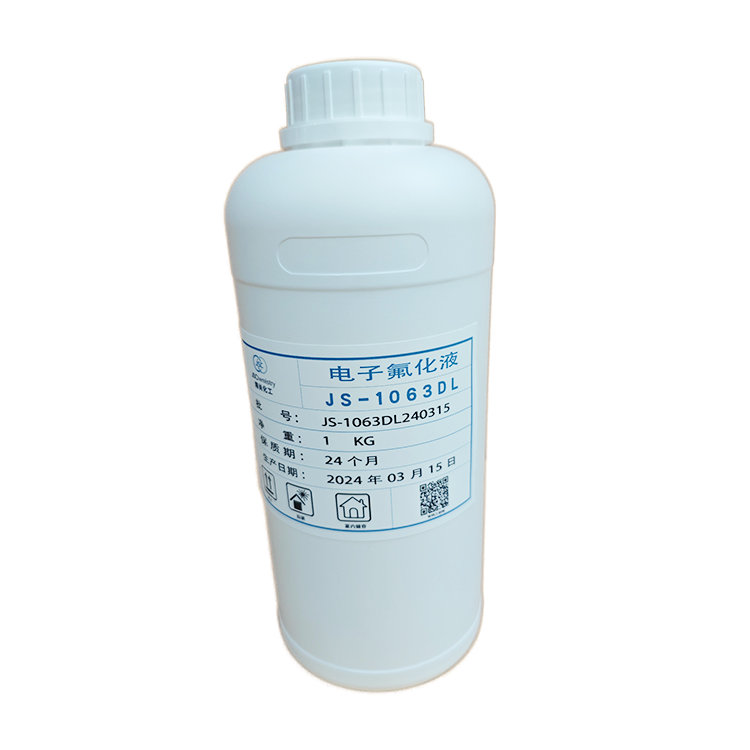

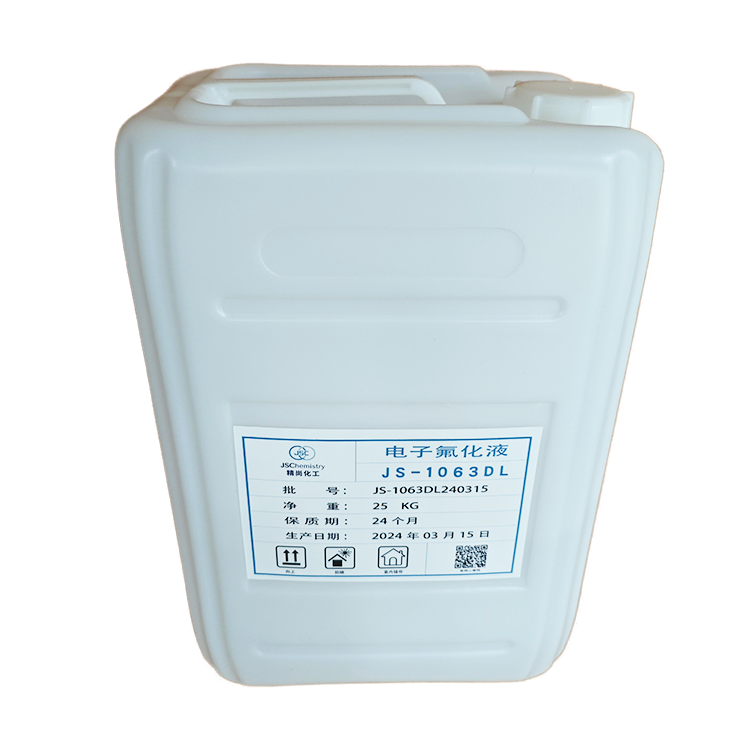

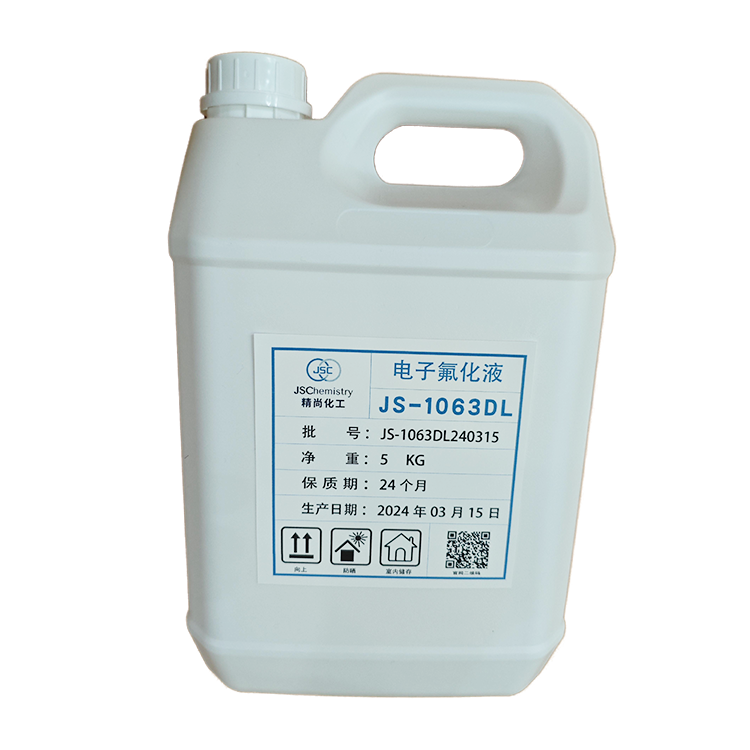

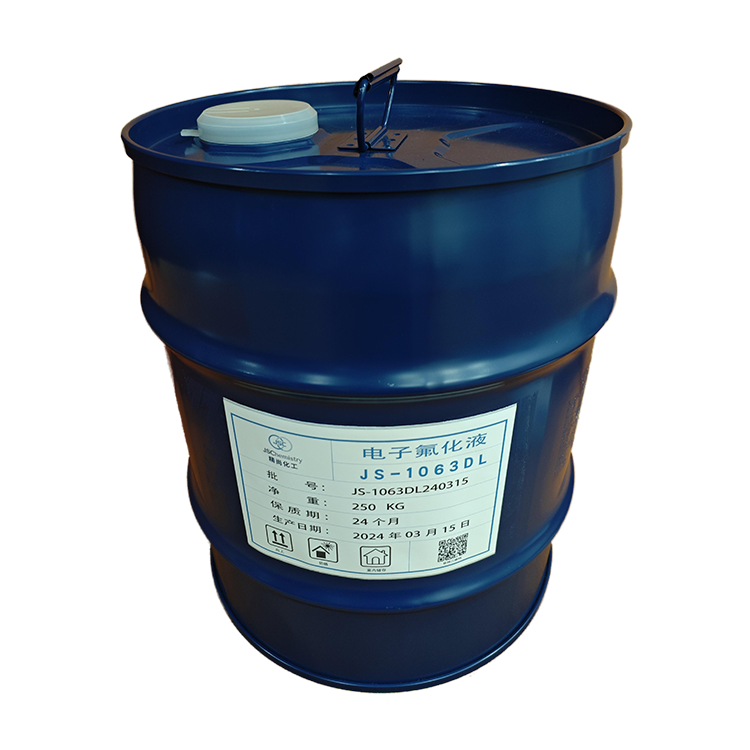

JS-1063DL electronic fluoride solution should be packaged in a clean, dry, and free of other impurities storage tank, with a rubber lined cover and encrypted seal during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-1063DL electronic fluoride solution is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
