JS-1040 Electronic Fluorination Liquid

Product Information

Brand: Jingshang

Model: JS-1040

Color: Transparent liquid

Specifications: 1KG/barrel, 5KG/barrel, 25KG/barrel, 250KG/barrel

Shelf life: 24 months unopened

Boiling point: 40 ℃

Product Introduction

JS-1040 is an electronic fluorinated liquid based on hydrofluoroethers. It is a transparent, colorless, and low odor fluid at room temperature, designed to replace ozone depleting substances (ODSs), compounds with high global warming potential (GWP), and fluorinated materials. Its boiling point is higher than most chlorofluorocarbons, hydrochlorofluorocarbons, and hydrofluorocarbons, reducing evaporation losses.  JS-1040 electronic fluorinated liquid does not deplete the ozone layer and has extremely low global warming potential, making it an attractive alternative to perfluorocarbon and perfluoropolyether heat transfer liquids.  It has moderate solubility and good material compatibility, and can be used as a cleaning solvent or refrigerant.

Product Features

u Green and environmentally friendly

Low Global Warming Potential (GWP), Zero Ozone Depletion Potential (ODP), VOC Exempted Solvent (US Environmental Protection Agency).

u High security

Colorless, odorless, non flammable, non-conductive, strong thermal stability, low toxicity.

u Excellent comprehensive performance

Excellent heat resistance, chemical resistance, and hydrolysis stability;  Low surface tension, low viscosity, and low latent heat of evaporation.

u Good material compatibility

Has good material compatibility and is not easily damaged by metals, plastics, rubber, etc.  Insoluble with water to avoid damage to components caused by moisture.

Product Usage

JS-1040 electronic fluorine solution is widely used in many fields such as medical, electronics, precision instruments, optical lenses, semiconductors, new energy, and aerospace.  It can be used as a solvent for anti fingerprint coatings such as electronic displays or as a wetting agent for cosmetics. In addition, it can be used as a liquid cooled working fluid and cleaning agent component in semiconductor manufacturing processes such as semiconductor dry etching, wafer testing, and packaging testing;  The main aspects are as follows:

u Solvent: diluent used for anti fingerprint liquid, lubricant diluent;

u Drying: Drying after soaking in hydrocarbons or alcohol;

u Cleaning: metal degreasing cleaning, plastic cleaning, optical lens cleaning, dust removal;

u Coolant: Immersion cooling for data centers, semiconductor temperature control/coolant, power component cooling, food and medical industry cooling;

u Foaming: Daily chemical foaming, polyurethane foaming:

technical parameter

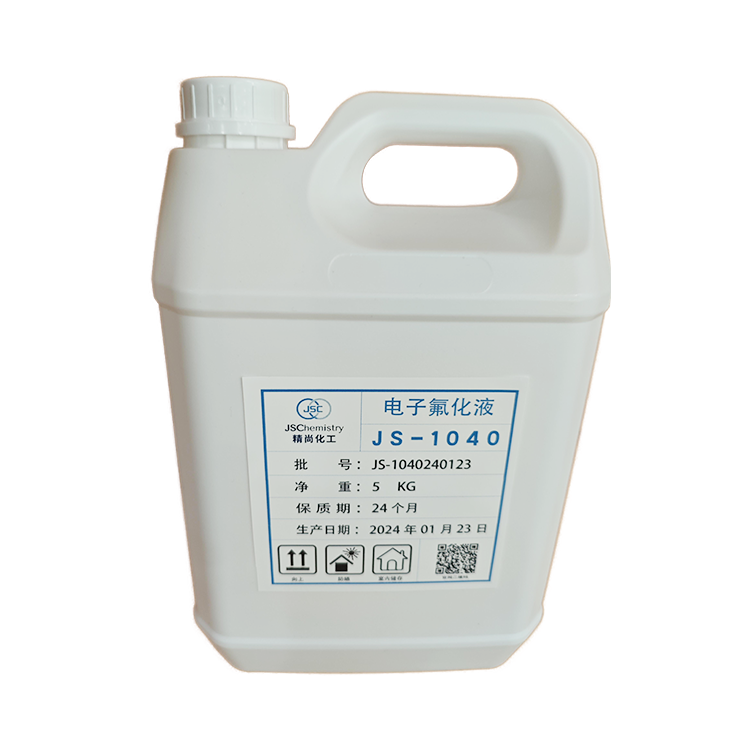

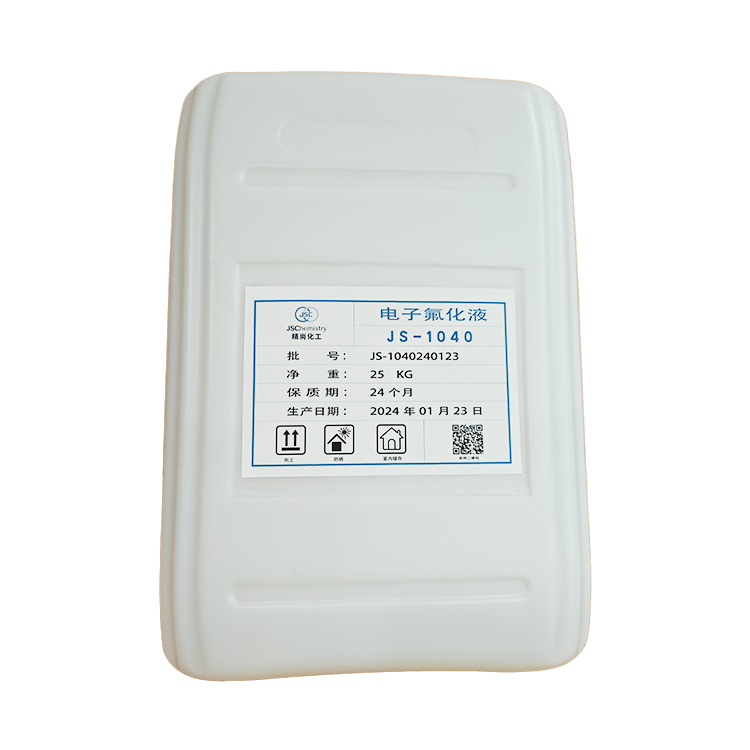

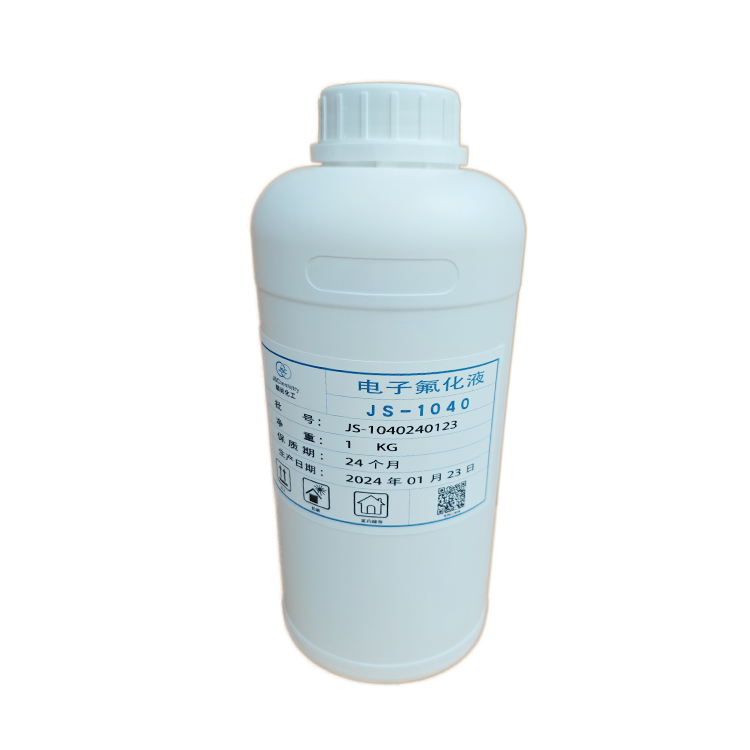

Product packaging

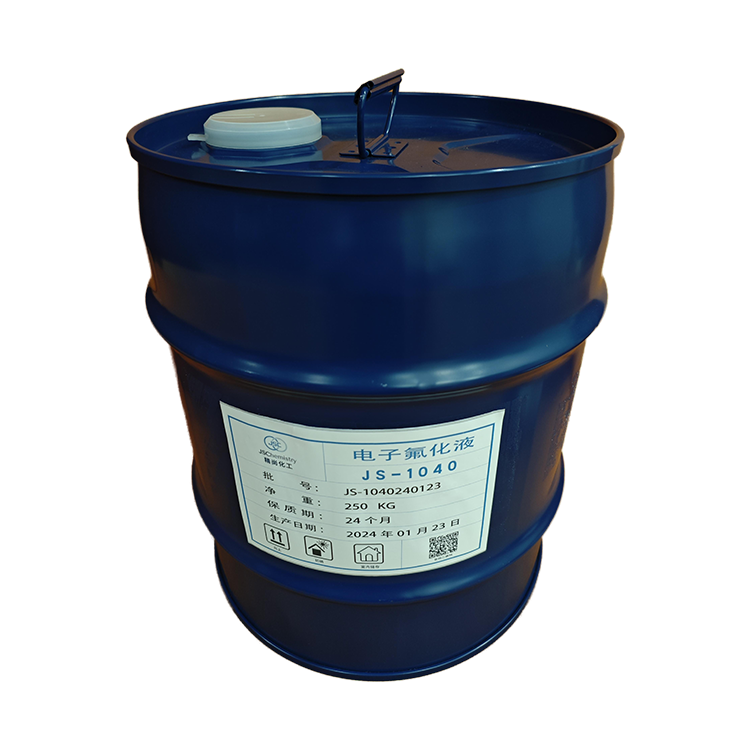

JS-1040 electronic fluoride solution should be packaged in a clean, dry, and free of other impurities storage tank, with a rubber lined cover and encrypted seal during packaging. 1KG/barrel, 5KG/barrel, and 25KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.

Product storage

JS-1040 electronic fluoride solution is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years;  The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.

Precautions for use

u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.

u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention;  If in contact with skin, please wash thoroughly with soapy water.

u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
